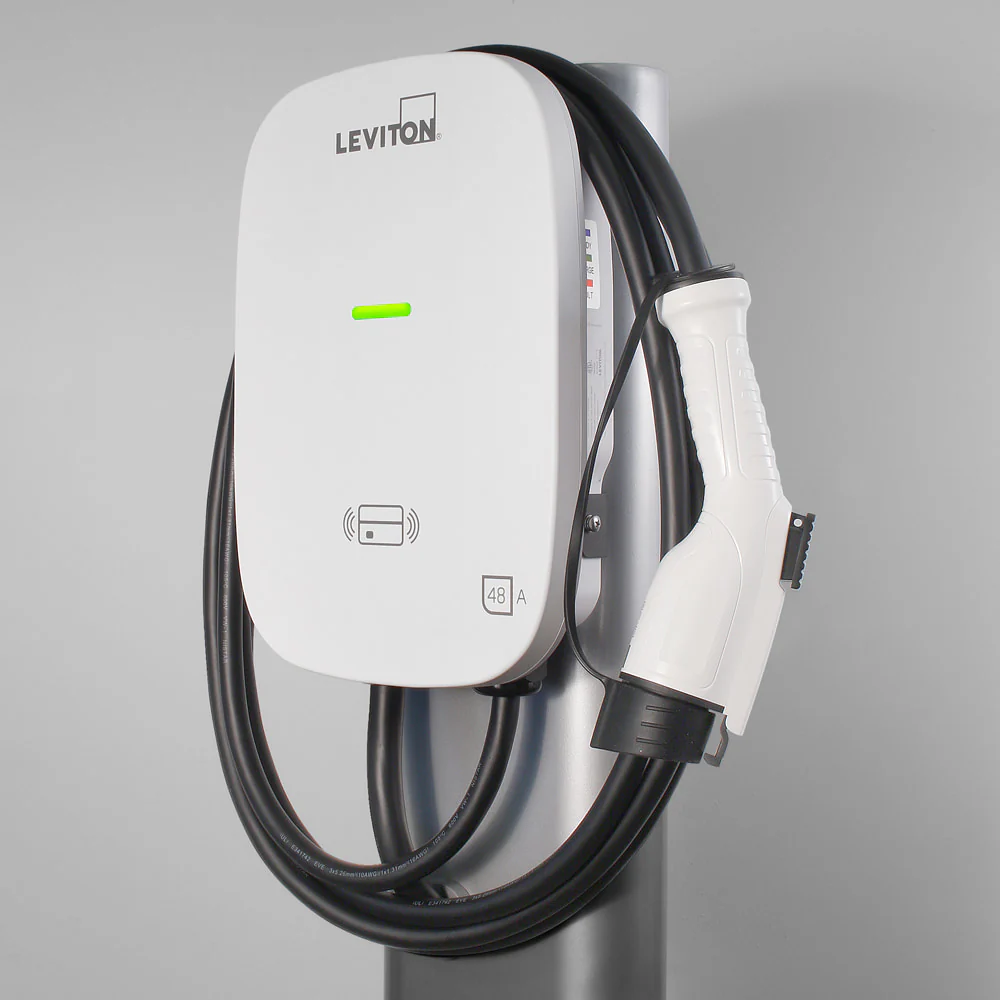

Leviton 48A Level 2 Electric Car Charger, Model EV480*
Description
Leviton is proud to be a pioneer in the electric vehicle supply equipment (EVSE) industry, providing charging solutions for over a decade while keeping up with the latest technology.
Features

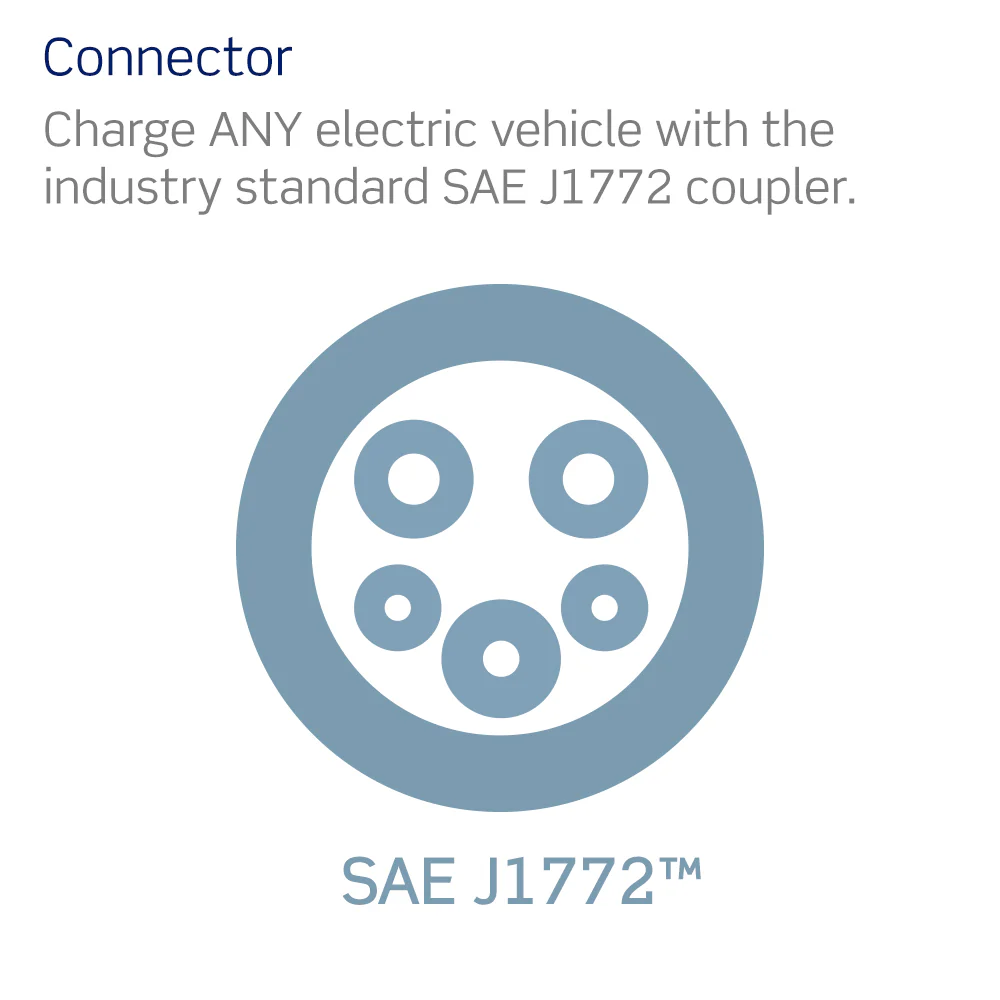

- Fast and secure charging of any SAE J1772™ compatible electric vehicle
- Optional access control: station comes with RFID disabled - simply tap RFID card to activate
- Cable design prevents cord from freezing and cracking in extreme weather
- For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R

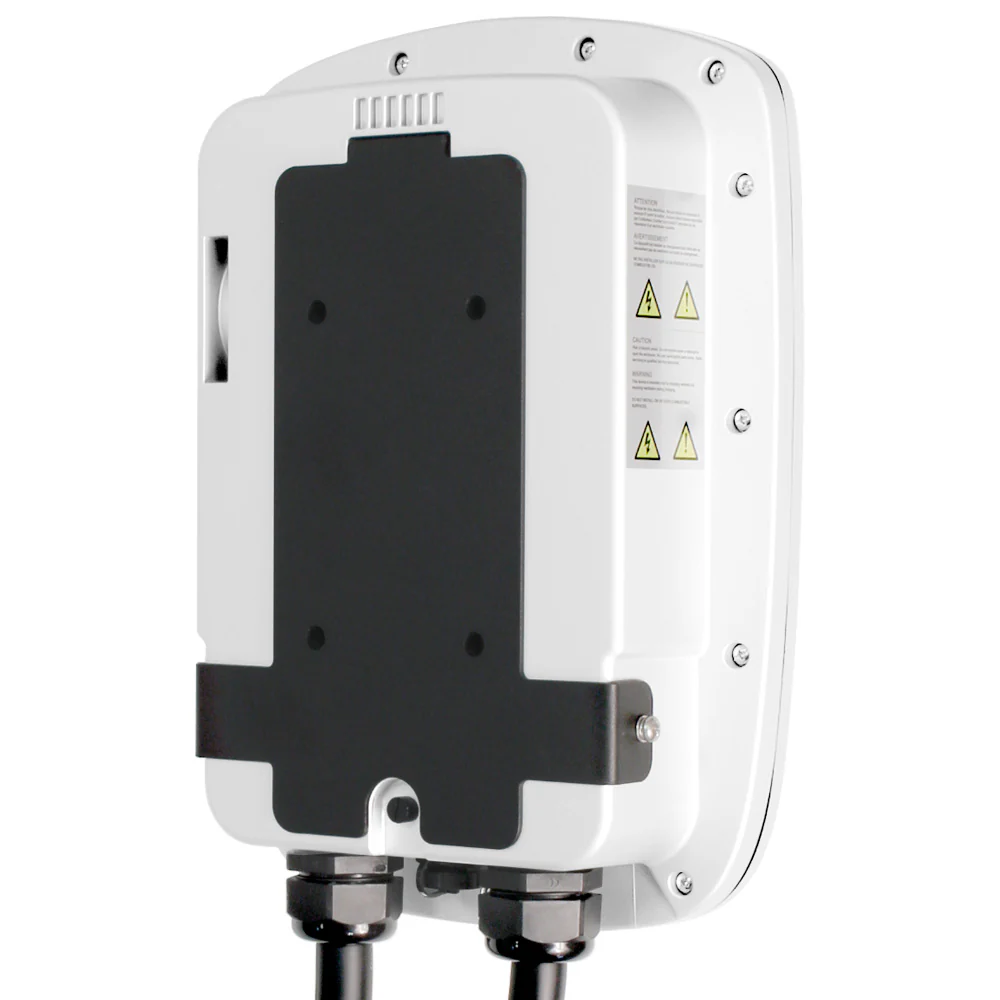

- Easy installation with pre-attached input cable and mounting hardware included
- Energy Star Certified
Technical Information
Electrical Specifications
Amperage: 48 A
Breaker: 60 A
Charge Connector Cord: #7 AWG SAE J1772
Number of Phase / Wire: L1, L2 and Ground, Bottom Feed
Operating Temperature: -30°C to 50°C
Output Power: 11.6kW
Short Circuit Current Rating: 20 mA CCID per UL 2231
Voltage: 208/240 VAC
Environmental Specifications
Altitude: Up to 6,500 ft. (2,000 m)
Charging Cable Operating Temperature: -30°C to +50°C
Cooling: Natural Cooling
Operating Humidity: < 95% Relative Humidity, Non-Condensing
Material Specifications
Enclosure Material: Plastic (PC+PBT)
Enclosure Rating: NEMA Type 3R
Status Indicator: Power Present, Charging, Fault
Mechanical Specifications
Cable Length: 18 ft. (5.5 m)
Product Features
Application: Home, Commercial
Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
Device Type: Charger
Standards and Certifications
Standards and Certifications: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant
Warranty
Warranty: 2-Year Limited
Document
Original: $583.16
-65%$583.16
$204.11
