Leviton Decora Edge 3-Way Switch, 15 Amp, White, Model E5603-W
Description
15 Amp, 120/277 Volt, Decora Edge 3-Way AC Quiet Switch, Residential Grade, Self-grounding - White
Leviton’s Decora Edge wiring devices provide the classic appearance and superior performance of Decora devices in a new, easier-to-install, safer design.

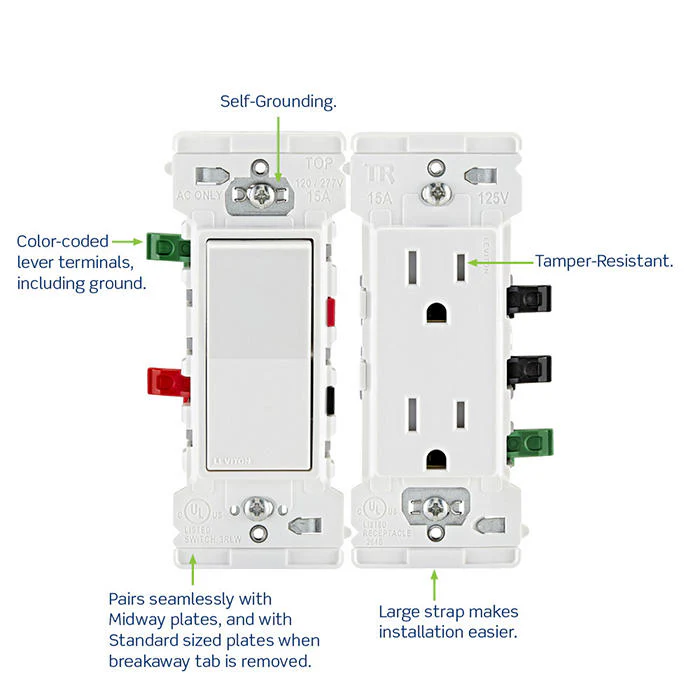

Innovative installation features such as color-coded lever terminals (including the ground terminal) for faster, efficient wiring, a larger strap with a unique tongue and groove alignment feature for quicker trim out on multi-gang installations, and no exposed metal parts for safety, make Decora Edge ideal for new home construction and MDU projects as well as retrofit applications.
Installers using Decora Edge will experience an installation process as unique as it is practical. The color-coded levers provide the foundation for quick installation by helping to rapidly identify the correct terminal for wiring, including a first of it’s kind lever terminal for the ground wire. The lever termination feature assures a positive connection has been made. This patent pending design also has a snap feature with an audible “click” so installers can be confident with every termination.
Features
- FASTER – Patent-pending lever terminals for fast, efficient wiring. As Easy as PUSH. CLICK. DONE
- EASIER – Large strap makes installations easier as well as the ability to use 14 gauge and 12 gauge stranded and solid copper wire
- SAFER – No exposed metal parts for enhanced safety
- CONVENIENT – Color-coded lever terminals to help prevent miswiring
- COMPATIBLE – Coordinates seamlessly with other Decora devices and can be used with any sized Decora wallplate
Technical Information

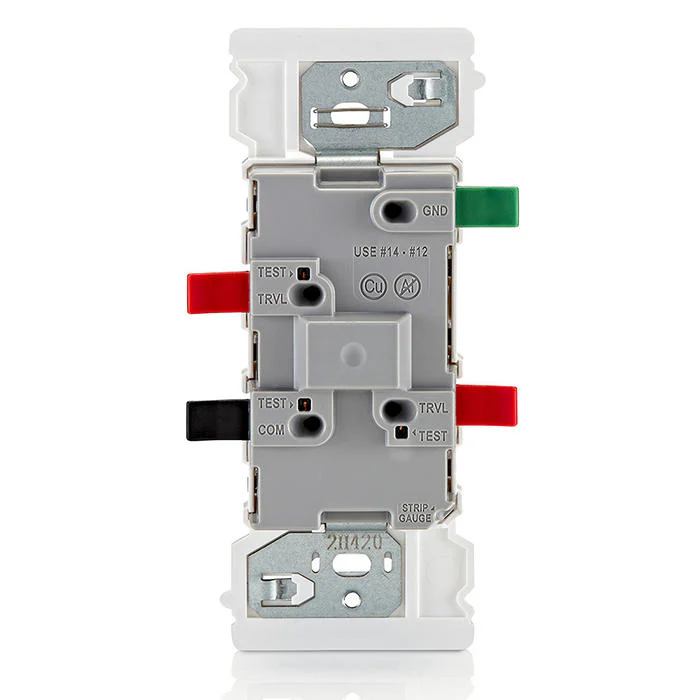

Terminal Accom. : Side Lever Wire #14-#12 AWG; Stranded and Solid copper wire only
Terminal ID : Color Coded Lever Terminals, including Ground
Termination : Side Lever
Type : Rocker Switch
Warranty : 2-Year Limited
Electrical Specifications
Amperage : 15 A
Grounding : Self-Grounding
HP Rating : 1/2HP-120V 2HP-240V-277V
Max. Amperage : 12 Amp
Voltage : 120/277 VAC
Amperage : 15 A
Color : White
Device Type : Rocker Switch
Grade : Residential
Mechanical Specifications
Actuator Material : Thermoplastic
Body Material : Thermoplastic
Strap Material : Plastic and Steel
CSA : CSA 22.2 No 111
NOM : NOM
UL Standard : UL 20: File E7458
