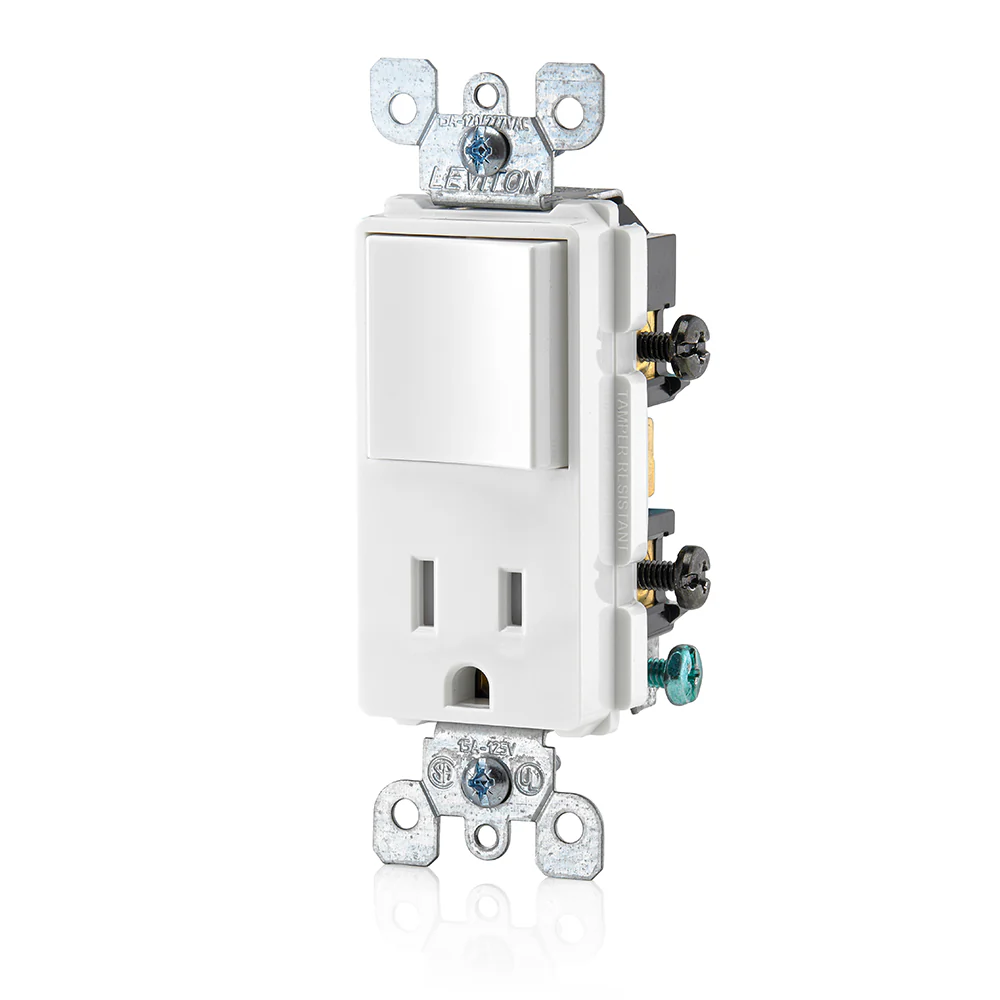

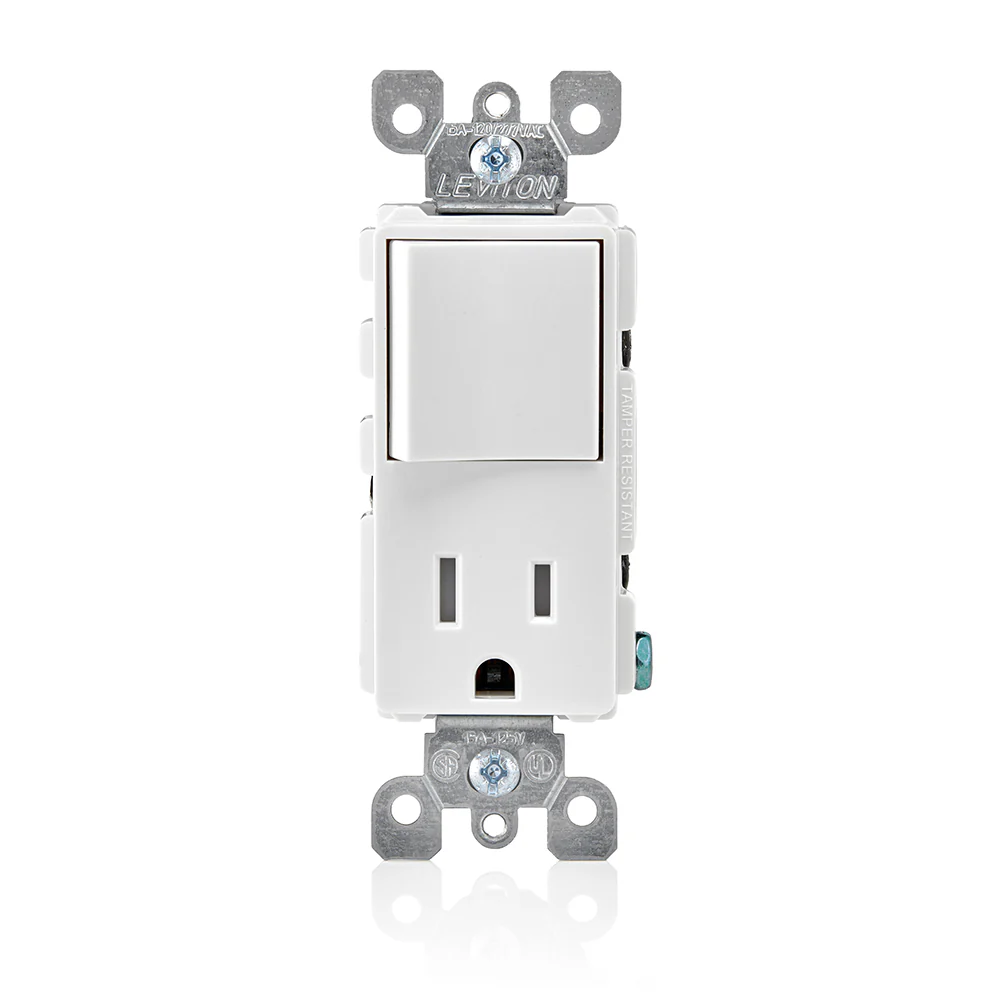

Leviton Decora Single Pole Switch & Receptacle Combo, 15 Amp,Model 5625-W*

Description

Leviton's Decora® Combination Switch is the perfect choice for any area in a home. Its simple, functional design allows you to save space wherever the switch is installed. Beautifully styled and part of the notable Decora® line, the switch comes in a variety of popular colors. Its impact-resistant exterior ensures damage protection and a long service life.

***Wallplate not included

Features

• Elegant Decora® brand designer styling provides multiple control in a single-gang wallbox
• All devices have grounding screw
• Fit standard wall boxes
• Backed by a Limited Two-Year Warranty
• 15 Amp
• 120 Volt
• Decora Single-Pole / 5-15R AC Combination Switch
• Commercial Grade
• Grounding
• Side Wired
• White


Technical Information

Actuator Material: Thermoplastic
Amperage: 15 A
Body Material: Thermoplastic
Color: White
Feature: Single-Pole / 5-15R
Grounding: Grounding
HP Rating: 1/2HP-120V 2HP-240V
Max. Amperage: 12 Amp
NEMA: 5-15R
Pole: 1
Product Type: Switch/Outlet Combo
Standards and Certifications: UL/CSA
Strap Material: Steel
Termination: Side
Type: Decora Combination Switch
Voltage: 120 VAC
Warranty: 2-Year Limited

Document

Instruction Manual

Technical Drawing
