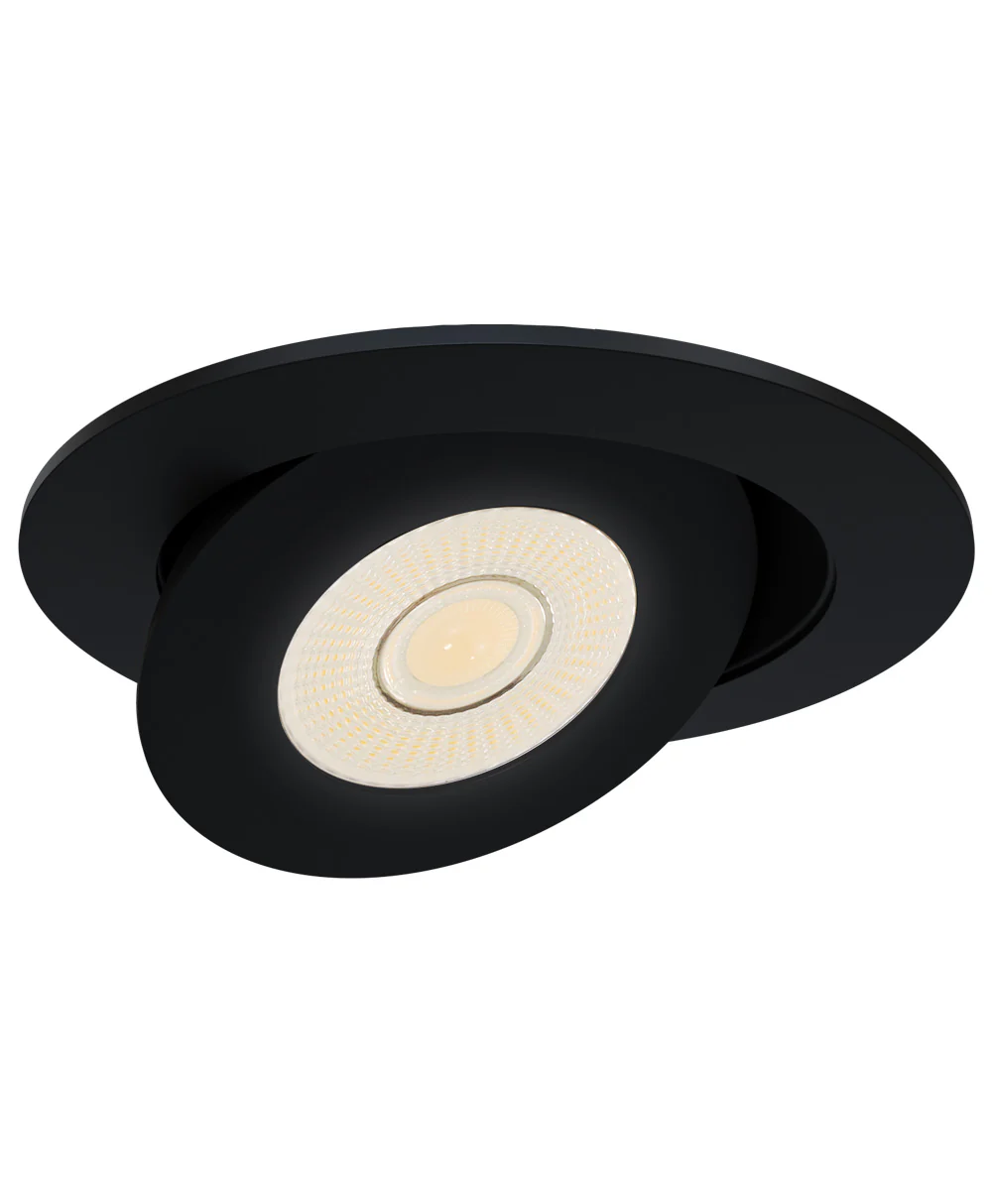

Liteline ORBIT 4" Rotatable Gimbal, Round, Black, SCP4-9W-CCT-BK*
Description
ORBIT is a 4" adjustable downlight that allows for easy directionality to precisely aim light in almost any direction. With 80-degree tilting and 360-degree rotation this 9 watt fixture is perfect for creating a seamless look throughout your space. Perfect for sloped ceilings with a steep roof pitch, and this fixture can adjust to shine straight down.
Features
-
Body
Durable aluminum body with 360° rotation and 80° tilting. -
LED Characteristics
This general application light fixture features a 9 watt LED module that maintains uniform intensity producing up to 750 lumens; with a typical CRI of 90. With a CCT range of 2700 K - 5000 K color temperature. -
Dimming
100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers. For compatible dimmers, visit www.liteline.com/Orbit . -
Beam Spread
The fixture lens provides 36° beam spread. -
Mounting
Includes two spring loaded clips to attach to any ceiling material. -
LED Driver
Extruded aluminum hardwire box with 210mA dimmable class II electronic LED driver with 100-135V, 60Hz AC input. Includes an 15" FT6 rated cable with 3-pin DC connector between driver and fixture approved for use in plenums and suspended ceilings. Includes 5 position CCT switch. -
Quick Connect Push-in Terminals
Three "Quick connect" push-in terminals for fast and easy wiring. -
Operating Temperature
-40°C~40°C (-40°F~104°F) -
Environment
Suitable for wet locations.
Approved for direct contact with insulation.
Airtight
Indoor / Outdoor rated.
Technical Information
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 36°
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Class II: Yes
Color: Black
CRI: 90+
Dimming: Yes
Dimming Tech: TRIAC/ELV
Energy Star: Yes
Hole Cut Ø: 4¼ " (108mm)
Input: 100-135V AC, 60Hz
LM79: Yes
LM80: Yes
Lumens: Up to 875
Lumens per Watt: Up to 100
Power Factor: 0.95
Projected Life: 70% @ 50,000 hrs
Title 24: Yes
Warranty: Lifetime
Wattage: 9W
- CCT Lumens:
- 2700 K - 785 Lumens
- 3000 K - 815 Lumens
- 3500 K - 860 Lumens
- 4000 K - 875 Lumens
- 5000 K - 815 Lumens
