Liteline SlimLED Original, 4" White Round LED Slim Profile Recessed Downlight, Color Selectable 27K - 50K, Model SLM4-CCT-WH
Liteline SlimLED Original, 4" White Round LED Slim Profile Recessed Downlight, Color Selectable 27K - 50K, Model SLM4-CCT-WH
Description
A slender, low-profile downlight that not only excels in performance but also makes residential installation a breeze. This downlight solution offers impressive light output, energy efficiency and a modern, streamlined design. Made to excel even in wet locations.
Features
-
Body
Durable airtight aluminum body with UV stable paint and white PMMA diffuser lens for low glare. Includes silicone gasket for wet location applications. -
LED Characteristics
This general application light fixture features a 9 watt LED module that maintains uniform intensity producing up to 680lumens; with a typical CRI of 90. Available with 5 step CCT switch on the driver (2700 K, 3000 K, 3500 K, 4000 K and 5000 K). -
Dimming
100%-10% dimming capability. This fixture is compatible with industry standard forward/reverse phase or TRIAC/ELV dimmers. For compatible dimmers, visit www.liteline.com/SlimLEDOriginal. -
Beam Spread
The fixture lens provides 110° beam spread. -
Mounting
Includes two spring loaded clips to attached to any ceiling material. The slim profile allows to be mounted under joists or duct work. -
LED Driver

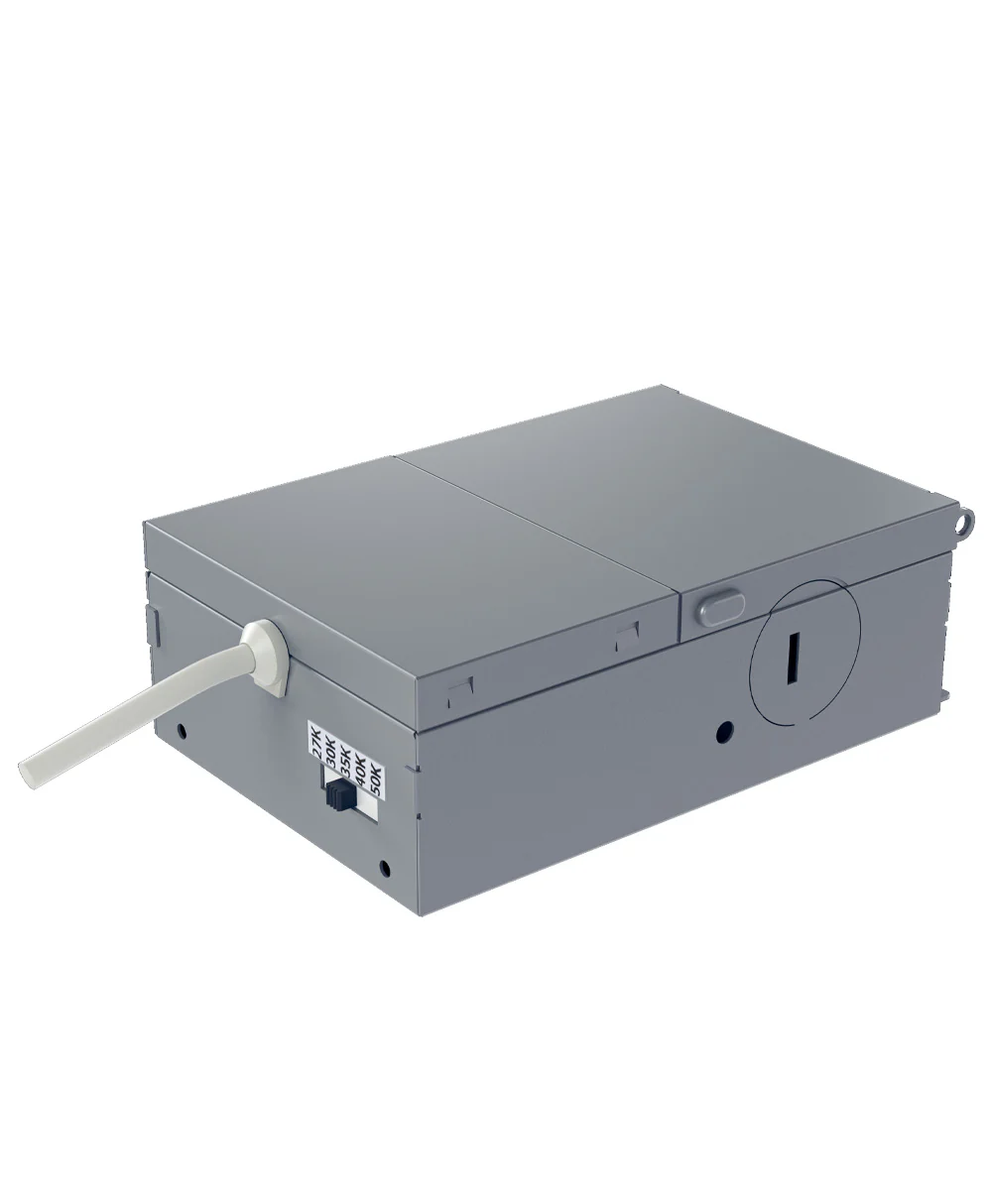

Steel hardwire box with 200mA (for standard output) or 280mA (for high
output) dimmable class II electronic LED driver with 100-135V AC input. Includes
an 18" plenum rated FT4 wire with DC 2.1 connector from driver to fixture -
Quick Connect push-in terminals
"Quick connect" push-in terminals for fast and easy wiring. -
Operating Temperature
-30°C~35°C (-22°F~95°F) -
Environment
Suitable for wet locations.
Suitable for insulated ceiling applications.
Indoor/outdoor
Technical Information
Application : Ceiling Recessed Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 110°
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Color: White
CRI: 90
Dimming: Yes
Dimming Tech: Forward/Reverse phase / TRIAC/ELV
Energy Star: Yes
Hole Cut: 4" : Ø 4¼ " (108mm)
Input: 100-135V AC, 50 / 60Hz
LM79: Yes
LM80: Yes
Lumens: Up to 680
Power Factor: 0.9
Projected Life: 70% @ 50,000 hrs
Title: JA8
Warranty: 3 years
Wattage: 9W
