Liteline 4" Luna LED Black Square Regressed Gimbal Recessed Fixture, Dim to Warm, Model RA4S-12RG-DTW90BK*
Liteline 4" Luna LED Black Square Regressed Gimbal Recessed Fixture, Dim to Warm, Model RA4S-12RG-DTW90BK*
Description

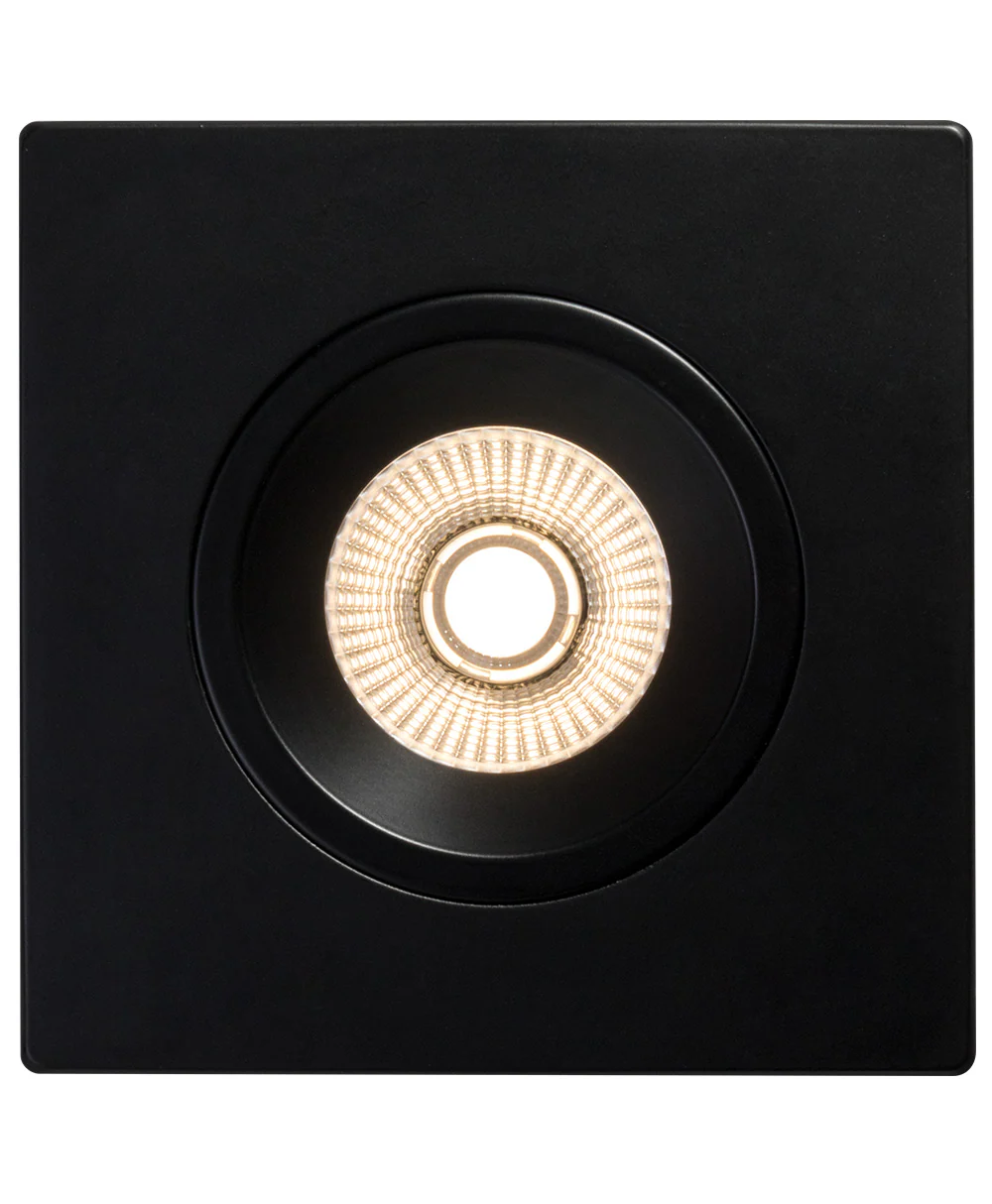

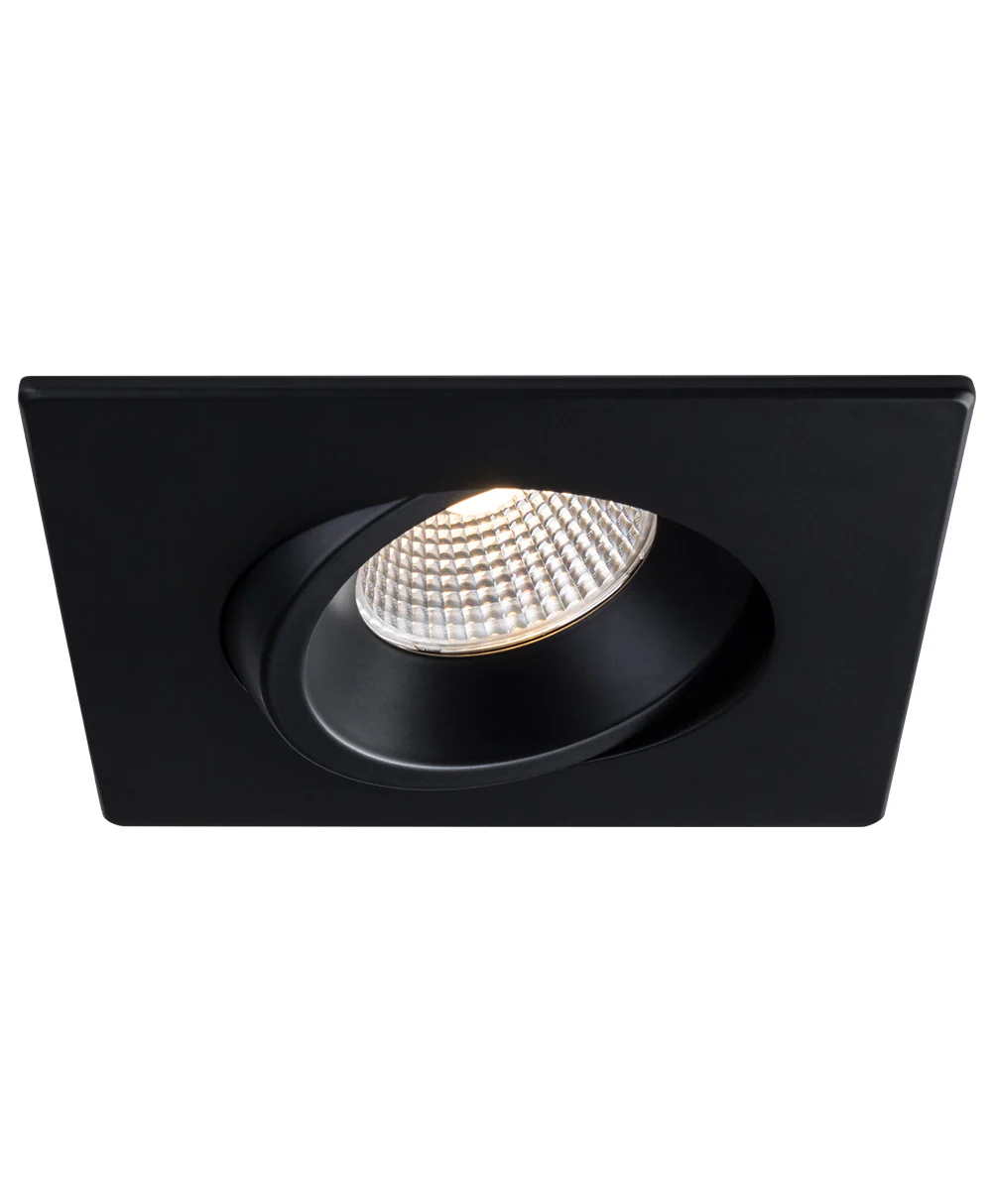

The RA4S-12RG-90 is a 12 watt 4" square regressed gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations.
Features
-
Durable airtight aluminum body with adjustable regressed gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source.
-
This general application light fixture features an LED module that maintains uniform intensity producing up to 850 lumens; with a typical CRI of 90. Dim-to-Warm fixtures available in 3000 K color temperature.
-
100%-10% dimming capability. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers (contact factory for list of compatible dimmers).
-
The fixture lens provides 38° beam spread.
-
Includes two spring loaded clips to attached to any ceiling material.
-
Extruded aluminum hardwire box with 12 watt (300mA) or 9 watt (210mA) dimmable class II electronic LED driver with 100-135V AC input. Includes an 18” FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings.
-
Three “Quick connect” push-in terminals for fast and easy wiring.
-
Operating Temperature -20°C~40°C (-4°F~104°F)
-
Suitable for wet locations.
-
Approved for direct contact with insulation.
-
Airtight
-
Durable airtight aluminum body with adjustable regressed gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source.
Technical Information
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 38°
CCT: 3000 K~2000 K
Certification: cETLus
Class II: Yes
Color: Black
CRI: 90
Dimming: Yes
Dimming Tech: Forward/reverse-phase TRIAC/ELV
Hole Cut Ø: 4¼ " (108mm)
Input: 100-135V AC, 50 / 60Hz
Lumens: Up to 700
Lumens per Watt: Up to 59
Power Factor: 0.9
Projected Life: 70% @ 33,000 hrs
Warranty: Lifetime
Wattage: 12W
Document
Specification Sheet
Original: $48.16
-65%$48.16
$16.86
