Liteline 4" SlimLED Plus, Adjustable Color Temperature, White Trim, Model SLM4-12W-CCT-WH
Description

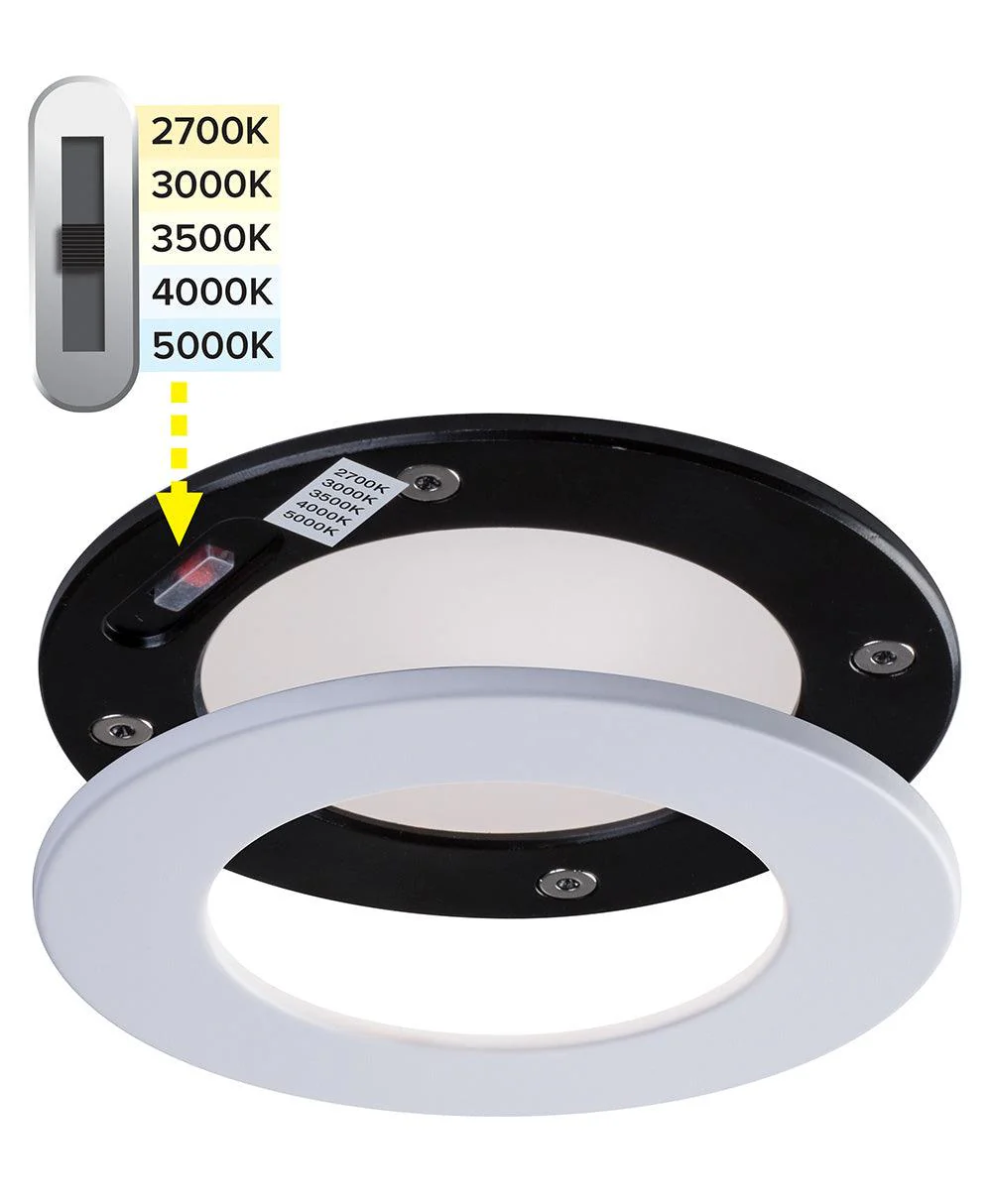

The SlimLED you know and love is now available with a 5-position CCT selectable switch. Adjustable from below the ceiling, simply remove the faceplate, select your color temperature, then magnetically snap on one of the trim options.
Features
-
Body
Durable airtight aluminum body with UV stable paint and white PMMA diffuser lens for low glare. Includes silicone gasket for wet location applications. Includes White interchangeable magnetic trim for round fixtures. -
LED Characteristics
This general application light fixture features a 12 watt (for 4") LED module that maintains uniform intensity producing up to 750 lumens; with a typical CRI of 90. Available with 5 step CCT switch (2700 K, 3000 K, 3500 K, 4000 K and 5000 K). -
Dimming
100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers. For compatible dimmers, visit www.liteline.com/SlimLED. -
Beam Spread
The fixture lens provides 110° beam spread. - Mounting
Includes two spring loaded clips to attached to any ceiling material. The slim profile allows to be mounted under joists or duct work. -
LED Driver
Extruded aluminum hardwire box with 300mA (for 4") or 370mA (for 6") dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" plenum rated FT6 wire with DC 2.1 connector from driver to fixture. -
Quick Connect push-in terminals
“Quick connect” push-in terminals for fast and easy wiring. -
Operating Temperature
-30°C~40°C (-22°F~104°F) -
Environment
Suitable for wet locations and suitable for insulated ceiling applications
Technical Information
Application : Ceiling Recessed Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 110°
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Color: White
CRI: 90
Dimming: Yes
Dimming Tech: Forward/Reverse phase / TRIAC/ELV
Energy Star: Yes
Hole Cut: 4" : Ø 4¼ " (108mm)
Input: 100-135V AC, 50 / 60Hz
LM79: Yes
LM80: Yes
Lumens: Up to 750
Power Factor: 0.9
Projected Life: 70% @ 50,000 hrs
Title: 24 JA8 (up to 4000 K)
Warranty: Lifetime
Wattage: 12W
Original: $20.79
-65%$20.79
$7.28
