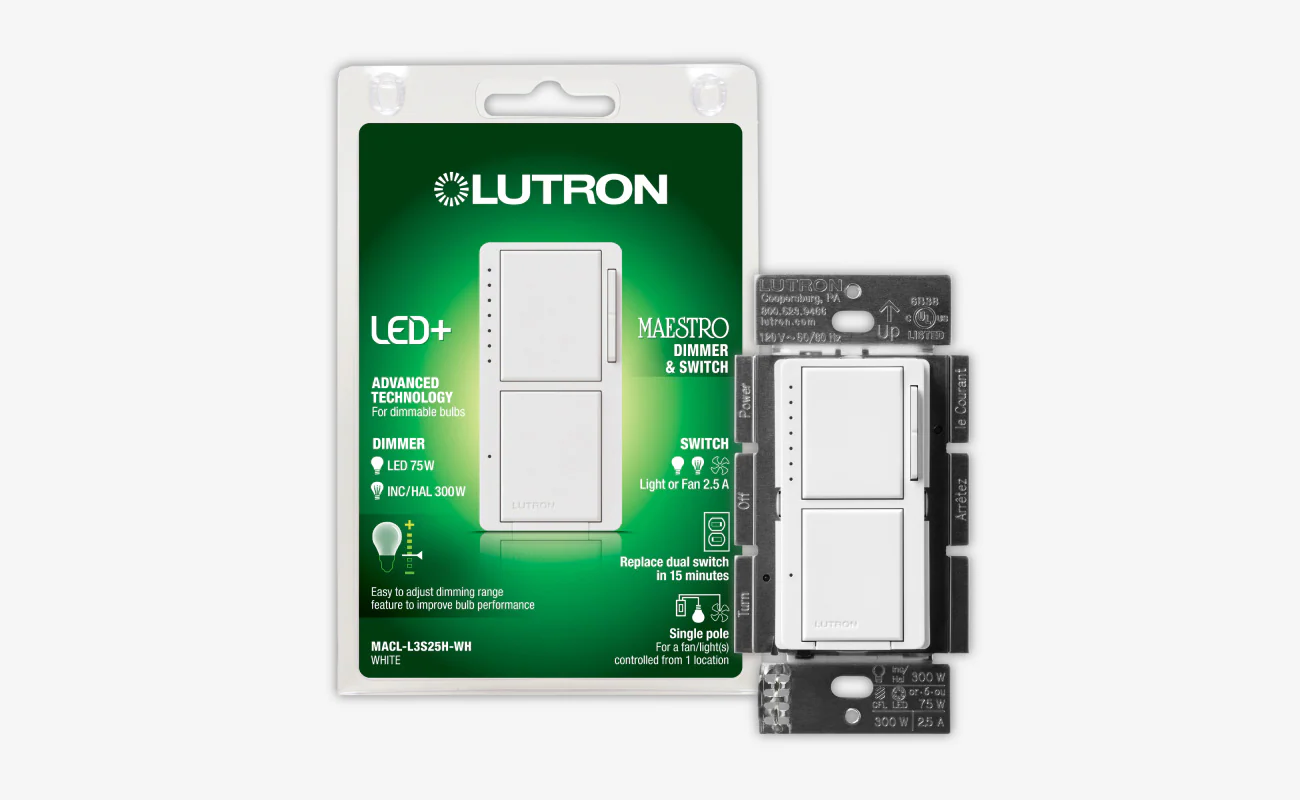

Lutron Maestro LED+ Dimmer & Switch combo, White, Model MACL-L3S25-WH

Description

Lutron Maestro Dual LED+ Controls.

Dimmer / Switch with advanced technology for dimming LED, CFL, Incandescent and Halogen bulbs. It features an Advanced Programming Mode (APM) that allows the user to customize their control to meet their specific needs. It's easy to install. It mounts in a standard, single-gang wall box and no neutral is required.

***NOT RATED FOR MAGNETIC OR ELECTRONIC TRANSFORMER LOADS***

Features

• Space-Saving Stacked Design
• Independently Control 2 Loads
• Superior Dimming Performance
• Personalize Control Setting
• No Neutral required
• NOT RATED FOR MAGNETIC OR ELECTRONIC TRANSFORMER LOADS

Technical Information

UL/CSA Listed: Yes (UL 1472/CSA C22.2 184.1)
Voltage: 120V
Hertz: 60Hz
Dimmer Maximum Load: 75w dimmable LED/CFL - OR - 300W Incandescent/Halogen
Dimmer Minimum Load: Minimum one bulb from the approved bulb list. Visit the online tool at www.lutron.com/LEDfinder for the best performing LEDs - OR - 25W Incandescent / Halogen
Switch Maximum Load: 2.5 amp general Purpose (Lighting - OR - Fan)
Switch Minimum Load: None
Environment: Indoor use only
Operating Temperatures: 32°F to 104°F ( 0°C to 40° C)
Relative Humidity Level: 0% to 90% non-condensing
Power Failure Memory: Yes
Warranty: 1-Year Limited Warranty
Color: White

Document

Sell sheet
Specification Sheet
Installation Manual
Programmation Guide
