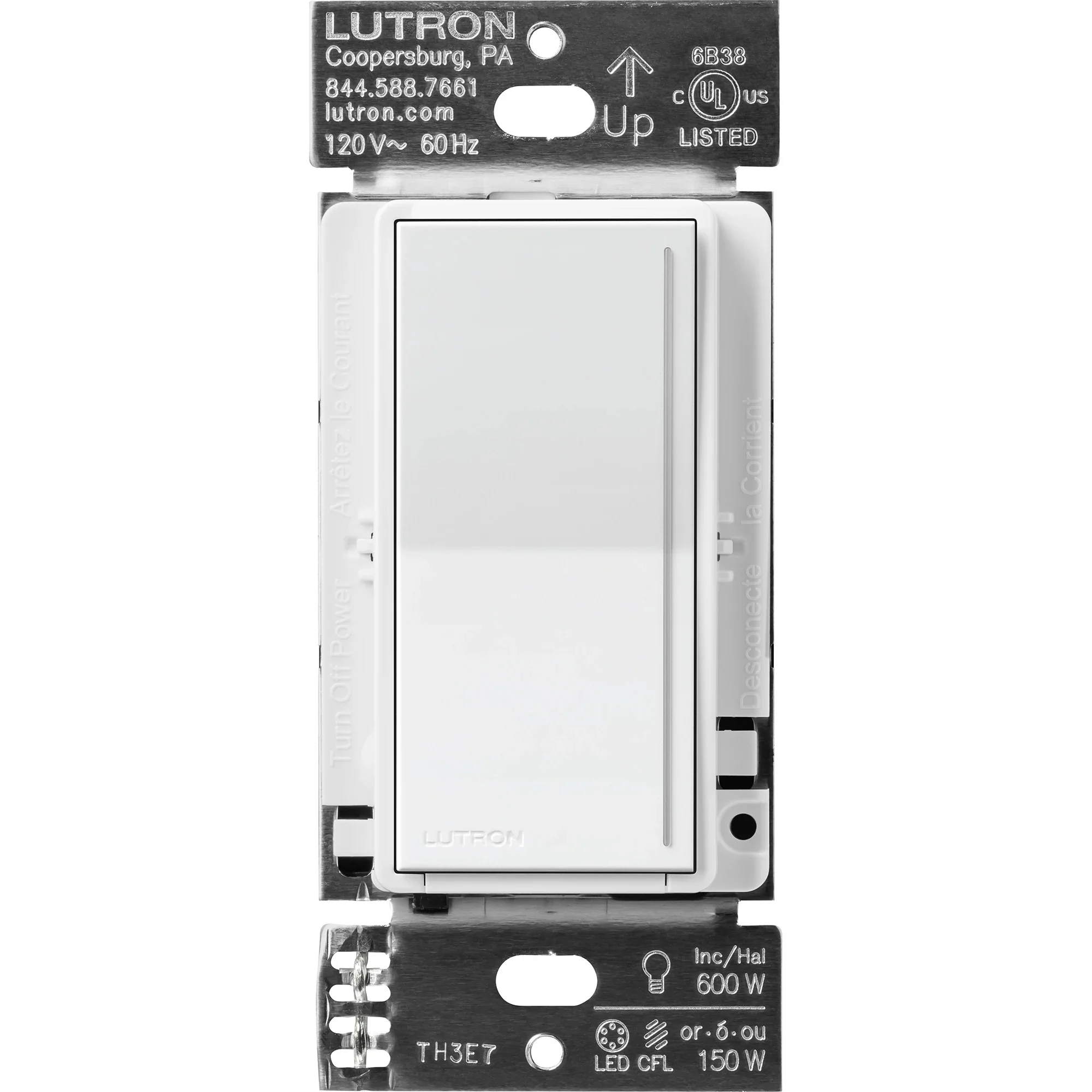

Lutron Sunnata LED+ Touch Dimmer, Model STCL-153M-WH
Description

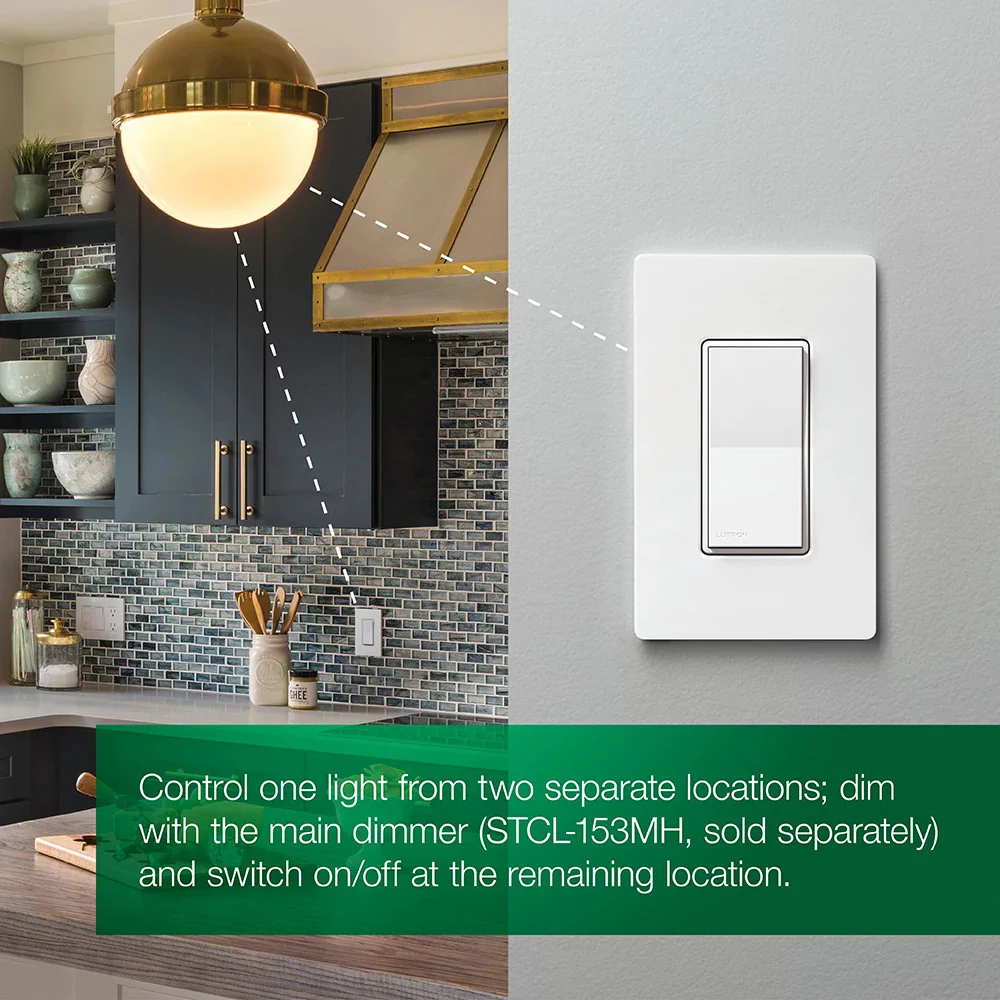

The Sunnata Touch LED+ dimmer switch with LED+ Technology features a large intuitive paddle to turn lights On/Off and a sleek touch bar to easily dim/brighten your lights. This touch dimmer switch is rated to control lighting loads up to 150W LED or 600W incandescent/halogen. Use with the Sunnata accessory switch (ST-AS-xx) to create a 3-way application or add more accessory switches to control from up to 10 locations in a multi-location application. The Sunnata Touch LED+ Dimmer provides dimming, while the Sunnata Accessory Switch (ST-AS-xx) allows for On/Off switching within the multi-location application; can also be used with an existing 3-way switch. Tap the top of the dimmer switch once for your favorite light level, set through MyLevel Personalization, and twice for full brightness; swipe your finger along the white LED lightbar to dim/brighten the lighting load. The smooth fade on and fade off allows your eyes to adjust comfortably to your determined light level; push and hold the Off button for 30 second delayed fade-to-off. No neutral required. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Touch technology with intuitive on/off paddle switch that fits in a standard designer wall plate opening.
- Advanced dimming technology designed for compatibility with a broad range of high efficacy bulbs.
- Dimmers and switches contain MyLevel Personalization Advanced Feature Mode to customize the control.
- Low-end and high-end adjustments to accommodate a wide range of bulbs.
- White light bar provides locator light to easily find the switch in the dark. Brightness of locator light is adjustable through MyLevel Personalization. Locator light can also be turned off.
- Can be used in single-pole, multi-location1 , or 3-way mechanical switch2 applications.
- Coordinating Claro and Stainless Steel wall plates available separately.
- 100% factory tested.
- NEMA SSL-7A Compliant.
- UL® Listed
Technical Information
Neutral Required: No
Compatible with mechanical switch: Yes. See instruction
Companion: ST-AS
Number of Locations: 10
Identical Companion: No
Load Types Controlled: LED/CFL/Incandescent/Halogen
Minimum Load: 1 LED/1 CFL/ 25w Incandescent-Halogen
Maximum Load: 150w LED/CFL - 600w Incandescent/Halogen
Voltage: 120Vac
