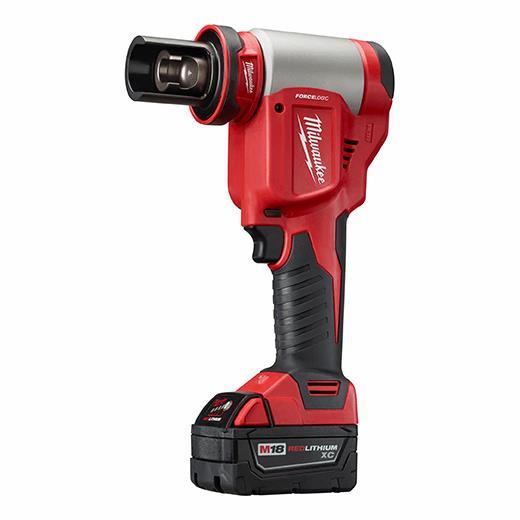

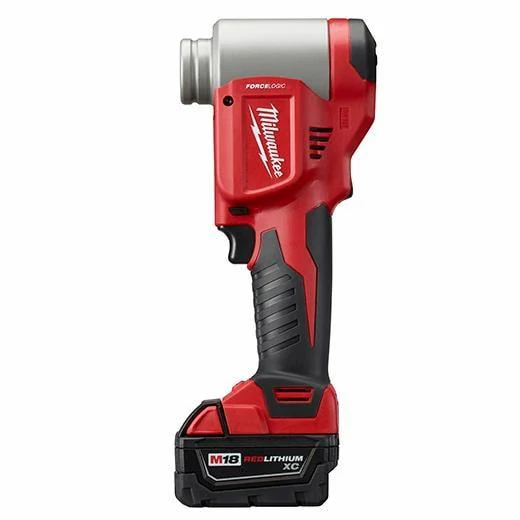

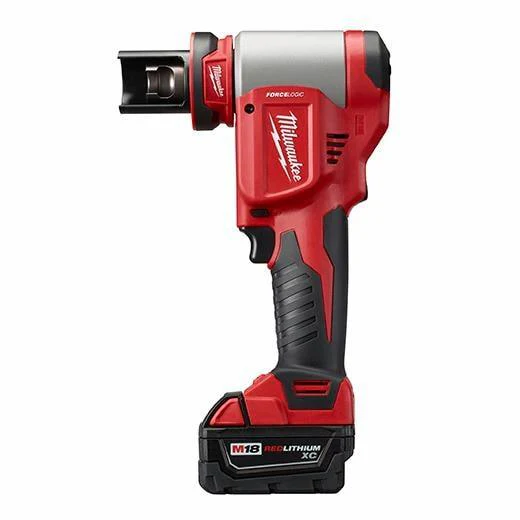

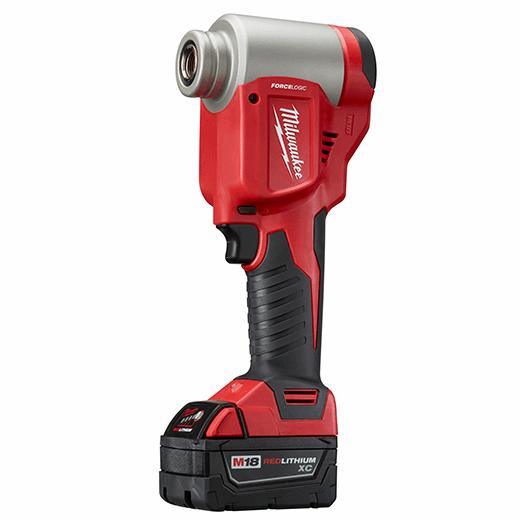

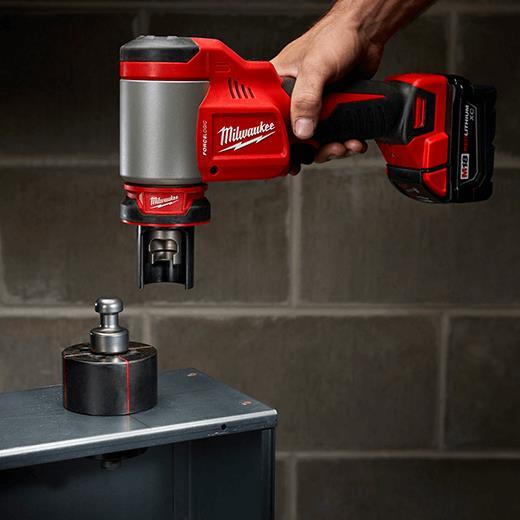

Milwaukee M18™ Force Logic™ 10Ton Knockout Tool 1/2 in. to 2 in. Kit, Model 2676-22*

Description

The Milwaukee (2676-22) M18 Force Logic™ high capacity knockout tool is the easiest way to punch holes. Each product within the Milwaukee knockout system was built on the principles of reducing the tedious steps of hole making, improving the speed of the process, and limiting the fatigue of the user. The result is a group of tools and accessories that redefine accuracy, durability, and productivity. The M18 knockout tool punches up to 4 in. holes in 12gauge stainless steel. Its compact right angle design allows the user to operate in tighter spaces while reducing fatigue. Milwaukee knockout tools and punches/dies are compatible with all other major brands.

Features

• Powerful hydraulic pump delivers up to 10 tons of force
• Powerful enough to punch 6" Holes in 12 gauge mild steel, and 14 gauge Stainless Steel
• Part of the M18™ System, featuring over 200+ tools
• Quick Connect Alignment System speeds up alignment by delivering the easiest set-up, and enabling the clearest view of the work surface
• EXACT™ Punches and Dies are rated for both mild and stainless steel punching
• EXACT™ Dies feature vivid red cross hairs for clearest alignment
• Large size ID markings permit easy punch and die selection
• The tooth geometry of EXACT™ Punches, and Slug Removal Ports in EXACT™ Dies, deliver optimal slug removal
• Compatible with competitive accessories
• Compatible with all M18™ batteries and M18™ chargers

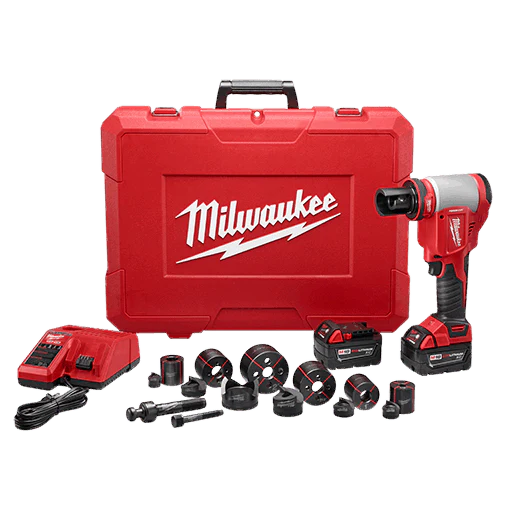

Kit Includes

(1) M18™ FORCE LOGIC™ 10T Knockout Tool Kit (2676-20)
(2) M18™ REDLITHIUM™ XC Extended Capacity Battery (48-11-1828)
(1) M18™ & M12™ Multi-Voltage Charger (48-59-1812)
(1) EXACT™ Rapid Reset 3/4" Draw Stud Set (49-16-2703)
(1) EXACT™ 3/4" Punch (49-16-2663)
(1) EXACT™ 3/4" Die (49-16-2662)
(1) EXACT™ 2" Punch (49-16-2671)
(1) EXACT™ 2" Die (49-16-2670)
(1) EXACT™ 1-1/4" Punch (49-16-2667)
(1) EXACT™ 1-1/4" Die (49-16-2666)
(1) EXACT™ 1-1/2" Punch (49-16-2669)
(1) EXACT™ 1-1/2" Die (49-16-2668)
(1) EXACT™ 1/2" Stainless Steel Punch (49-16-2661S)
(1) EXACT™ 1/2" Stainless Steel Die (49-16-2660S)
(1) EXACT™ 1" Punch (49-16-2665)
(1) EXACT™ 1" Die (49-16-2664)
(1) 7/16" Draw Stud (49-16-2680)
(1) 3/4" Draw Stud (49-16-2681)
(1) Quick Connect Collar
(1) Coupler
(1) Carrying Case
(1) Ball Stud

Technical Information

Length: 13.63"
Tool Warranty: 5 Years
Weight: 7.1 lbs
Power Source: Cordless
Warranty: 5 Year Limited Warranty
Battery: M18™ REDLITHIUM™
Charger: M18™ and M12™ Multi-Voltage Charger
Charge Time: 1 hour
Capacity in Mild Steel: 1/2" to 4"
Capacity in Stainless Steel: 1/2" to 4"
Output Force: 10 Tons
Quick Connect Draw Stud: Yes
Battery Warranty: 3 Year
Battery System: M18

Document

Owner's Manual
