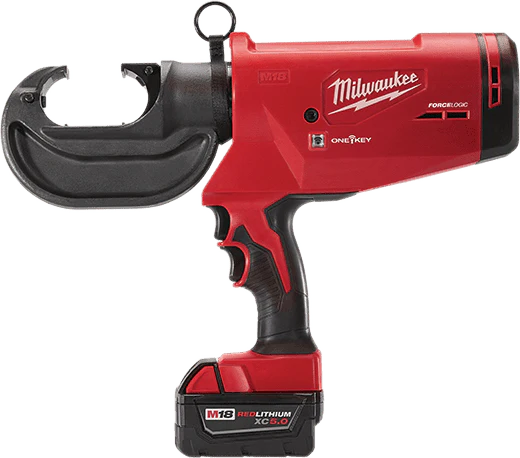

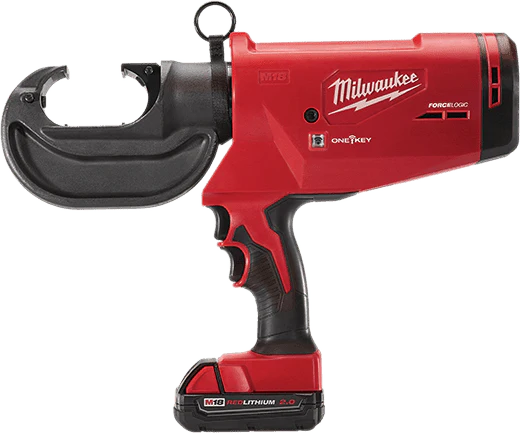

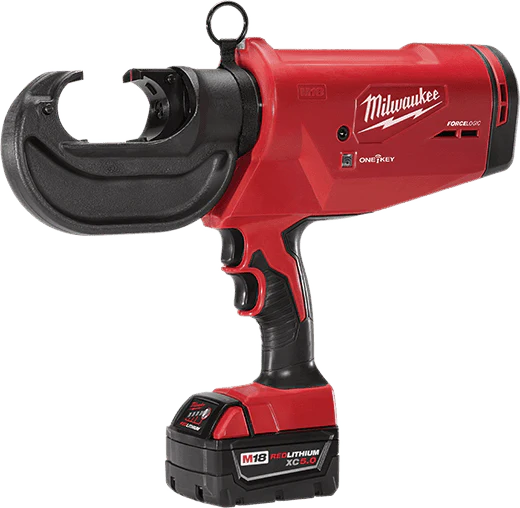

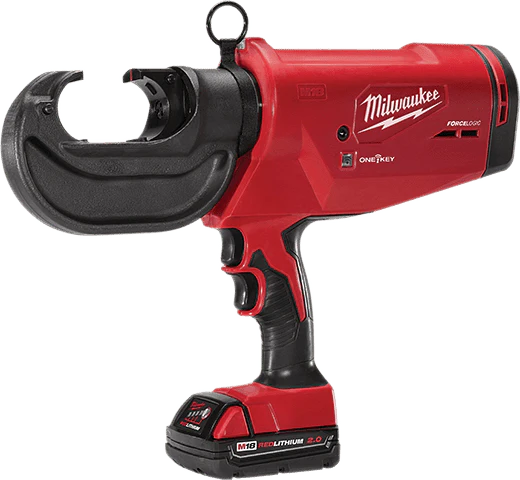

Milwaukee M18™ Force Logic™ 750 MCM Crimper, Model 2779-22*
Description

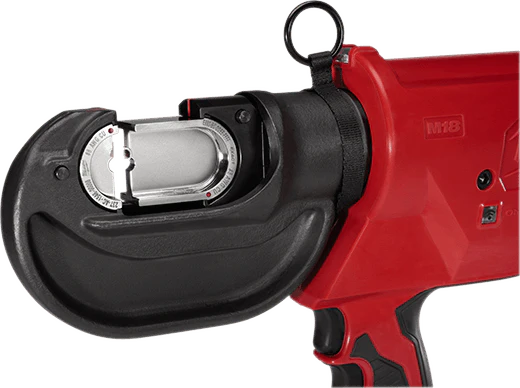

The M18™ Force Logic™ 750 MCM crimper is the easiest way to crimp, producing cULus classified crimps according to the UL 486AB classification standards for #8 750 MCM Cu and dual rated Anderson, Blackburn® Burndy, Ilsco, Panduit, Penn Union and Thomas & Betts connectors. Milwaukee® EXACT™ 12T UStyle dies are individually engineered both for quality crimps and for faster connections on all sizes with die lengths specific to each connector. Additionally, every EXACT™ 12T ustyle die features vivid industry standard colors to indicate wire size and center alignment markings for easiest die selection and die alignment. All dies also eliminate cross referencing by imprinting the wire size onto completed connectors and are the only dies that are 100% serialized and measured for greatest accuracy and easiest inspection.
Features
- Find the most updated UL Classification Matrix in the Operators Manual
- Lightest 12T Crimper
- Most Balanced with Ergonomic Grip Design
- Bold Alignment Marks aid accuracy in crimp placement
- PFM™ (Predictive Force Monitoring) with Auto Complete Ensures Full Pressure
- PFM™ (Predictive Force Monitoring) Provides Instant Pressure Verification with Green Indicator
- Pre-Crimp Battery Check Automatically Ensures Enough Charge to Complete Each Crimp
- 350˚ Head Rotation Provides Easy Access in Tight Spaces
- The Tool Records & Stores Every Crimp Made for Professional Report Building through ONE KEY™
- Longer Life with POWERSTATE™ Brushless Motor & Weather Protected Electronics that Keep Dirt, Dust & Moisture Out

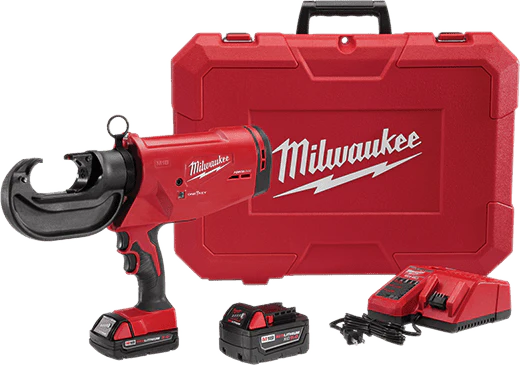

Kit Includes
(1) M18™ FORCE LOGIC™ 750 MCM Crimper
(1) M18™ REDLITHIUM™ CP2.0 Battery (48-11-1820)
(1) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Pack (48-11-1850)
(1) M18™ & M12™ Multi-Voltage Charger (48-59-1812)
(1) Carrying Case
Technical Information
Length 16.0"
Tool Warranty 5 Years
Weight 11.3 lbs
Power Source Cordless
ONE KEY Enabled Yes
Battery M18™ REDLITHIUM™
Capacity #8 – 750 MCM Cu / Al
Head Rotation 350 degrees
Adapative Pressure Control System Yes
Reporting and Tool Diagnostics Yes
Full Pressure Indicator Yes
Battery Warranty 3 Year
Battery System M18
Document
Original: $5,035.31
-65%$5,035.31
$1,762.36
