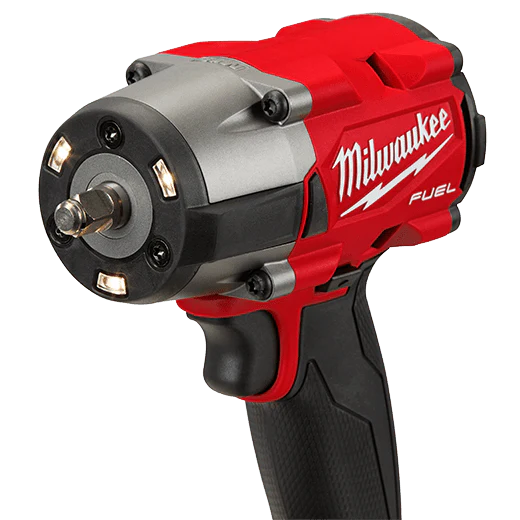

Milwaukee M18 FUEL™ 3/8 MidTorque Impact Wrench w/ Friction Ring (Tool Only), Model 2960-20*

Description

The MILWAUKEE® M18 FUEL™ 3/8" MidTorque Impact Wrench w/ Friction Ring delivers the best power to weight ratio, most access in tight spaces, and faster removal speed. It provides 600 ftlbs of nutbusting torque and only weighs 5.0 lbs, making it extremely versatile, capable of performing a wide variety of applications. Its POWERSTATE™ Brushless Motor generates the power needed to quickly perform many tasks, such as removing large bolts or lug nuts. This batterypowered impact wrench is the most compact in its class, allowing access to stubborn fasteners in spaces where larger impact wrenches can’t fit without needing to disassemble components to reach bolts. TriLEDs surround the anvil to deliver brighter light with fewer shadows. 4Mode DRIVE CONTROL™ offers greater precision with a range of preset RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUTOFF™ control applies no more than 35 ftlbs of torque for handtight fastening applications to prevent overtightening.  Mode 4 also features Bolt Removal Control that delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. REDLINK PLUS™ Intelligence ensures maximum performance, protecting the tool against overloads, overheating, and overdischarge. The M18™ REDLITHIUM™ battery pack (not included) fits M18™ tools, delivering more work per charge and more work over the life of the pack.

***BATTERY AND CHARGER ARE NOT INCLUDED

Features

• Friction ring (hog ring) ensures quick and easy socket changes
• 6.0" in length provides most access in tight spaces
• Faster Removal speed provides increased user productivity
• Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
• 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
• AUTO SHUT-OFF™ control applies no more than 35 ft-lbs of torque for hand-tight fastening applications to prevent overtightening
• Bolt Removal control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops
• Mode 1 RPMs: 0-1,250; Mode 2 RPMs: 0-1,950; Mode 3 RPMs: 0-2,575; Mode 4 RPMs: 0-2,575
• Mode 1 IPMs: 0-900; Mode 2 IPMs: 0-2,100; Mode 3 IPMs: 0-3,100; Mode 4 IPMs: 0-3,100
• REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
• Works in up to to 69kV environments
• Compatible with all M18™ batteries & Chargers (NOT INCLUDED)

Technical Information

Height: 8.12"
Length: 6"
Weight: 3.4 lbs
Width: 2.74"
Power Source: Cordless
Nut Busting Torque: 600 (ft-lbs)
Fastening Torque: 550 (ft-lbs)
Anvil Type: 3/8" Square w/ Friction Ring
Battery System: M18

Document

Owner's Manual
