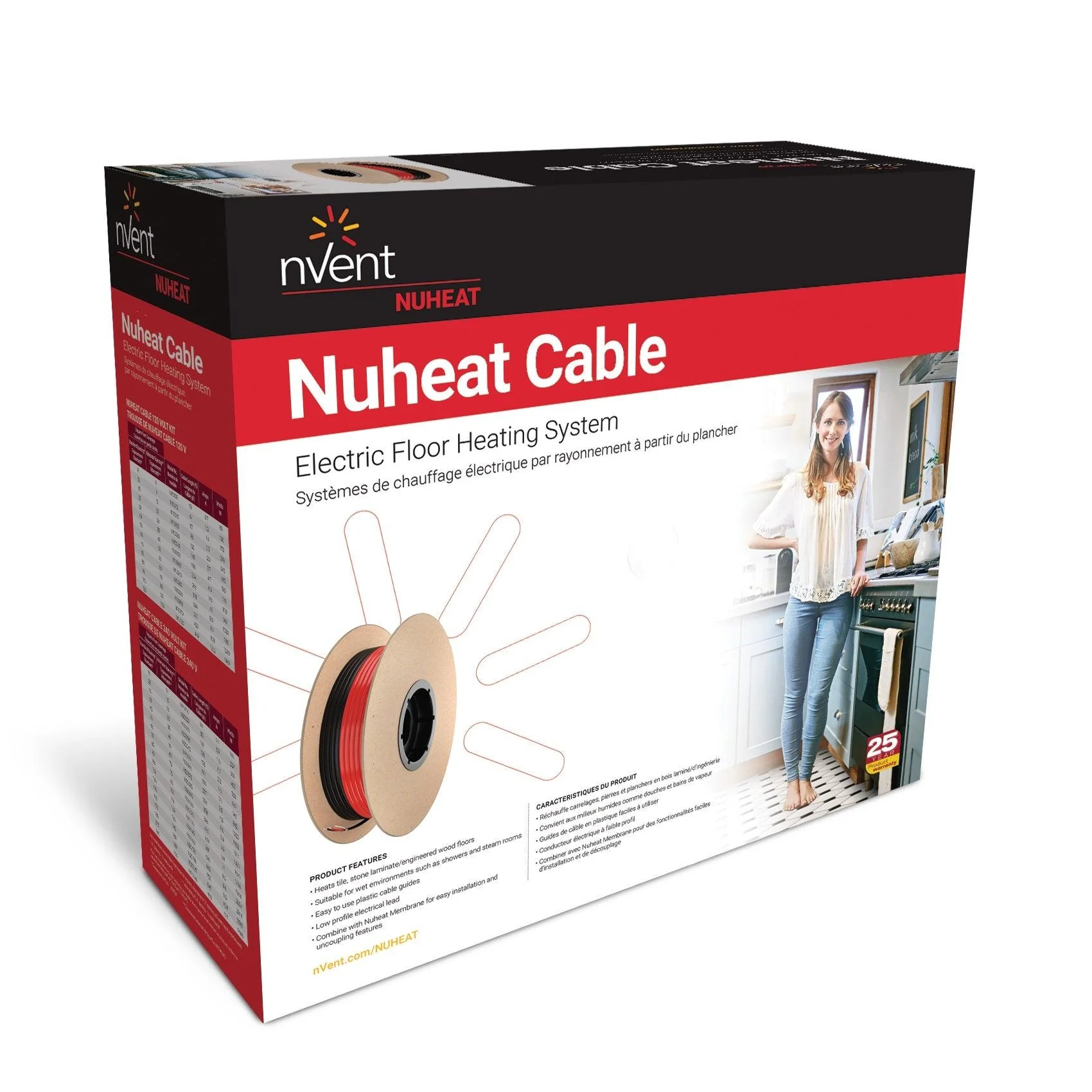

nVent Nuheat Cable Kits, 120V, 50 sq. ft, Model N1C050*

Description

nVent Nuheat Cable is an easy-to-install electric floor heating system that combines installation versatility with advanced new technology. Choose the cable kit that is best suited for the size of the room/area and configure it on-site to provide floor heat in the desired areas of the room.

Benefits

• Heats tile, stone, and laminate/engineered wood floors
• On-site flexibility
• Flexible wire spacing and heat output
• Compatible with nVent Nuheat Membrane
• Comprehensive selection of sizes to choose from
• Suitable for wet environments such as showers and steam rooms
• Redesigned, thinner cold-lead and factory splice
• New mid-point marker on the heating cable

Technical Information

Operating Voltage: 120 V
Length: 188'
Covering Surface: 50 sq. ft.
Amperage: 4.7 amps
Power Output: 12 - 15 watts per square foot
Maximum Ambient Temperature: 194°F (90°C)
Material: Two single conductor Tefzel-coated resistance wires covered by a tin-plated copper braid and then coated with a durable copolymer (PVC) outer jacket

Documents

Brochure
Installation Guide
