RAB Design Lighting 11W Ultra Slim LED Undercabinet Light, 1000 mm Long, Warm White, Model UC-LED1000-NW*
RAB Design Lighting 11W Ultra Slim LED Undercabinet Light, 1000 mm Long, Warm White, Model UC-LED1000-NW*
Description
RAB's UC Ultra slim fixture model can be combined together with their UCP and UCT LED Series. It's slim design makes it ideal to use in shelvings, under cabinets, bookcases, walls and as a task light. Available in 3 colors and 3 lengths, it's the perfect light for your project.

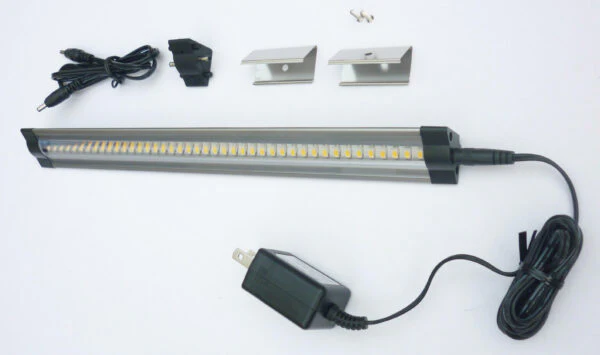

*Each unit includes: 1 fixture, 1 direct connector, 1 cable connector, 2 mounting plates and 2 screws.
**Power supply must be purchased separately
Features
- Ultra-slim design.
- Extruded aluminum housing with a brushed finish.
- Available in three lengths: 300mm (3 watts), 500mm (5 watts), 1000mm (11 watts).
- Link up to 3m (9.8 ft) on one power source. 90-degree corner connector available.
- Natural white(4000k) or warm white (3000k) are available.
- Hardwire kit or plug-in power supply units are sold separately.
- Most TRIAC dimmers will work however under low load conditions, there may be flickering with some dimmers.
- Lutron Diva DVCL 153P is the recommended dimmer that works best without flickering under all load conditions.
- cULus approved.
Technical Information
Model: UC-LED1000
Length: 1000 mm
LED Color: Natural White 4000K°
Watts: 11
Lumens: 732
Efficacy (Lumens/Watt): 244
Voltage: 24DC
Dimming: Compatible with most residential dimmers, Lutron DVCL 153P is recommended for best results
Accessories: Corner Connector, Switch Connector, Dimmer Controller, Connector Cable, DC4 Output Splitter, DC8 Output Splitter (No included. Accessories must be purchased separately)
Certification: cULus, Easy Install
Warranty: 5 Years
Documents
Description
Description
RAB's UC Ultra slim fixture model can be combined together with their UCP and UCT LED Series. It's slim design makes it ideal to use in shelvings, under cabinets, bookcases, walls and as a task light. Available in 3 colors and 3 lengths, it's the perfect light for your project.
*Each unit includes: 1 fixture, 1 direct connector, 1 cable connector, 2 mounting plates and 2 screws.
**Power supply must be purchased separately
Features
- Ultra-slim design.
- Extruded aluminum housing with a brushed finish.
- Available in three lengths: 300mm (3 watts), 500mm (5 watts), 1000mm (11 watts).
- Link up to 3m (9.8 ft) on one power source. 90-degree corner connector available.
- Natural white(4000k) or warm white (3000k) are available.
- Hardwire kit or plug-in power supply units are sold separately.
- Most TRIAC dimmers will work however under low load conditions, there may be flickering with some dimmers.
- Lutron Diva DVCL 153P is the recommended dimmer that works best without flickering under all load conditions.
- cULus approved.
Technical Information
Model: UC-LED1000
Length: 1000 mm
LED Color: Natural White 4000K°
Watts: 11
Lumens: 732
Efficacy (Lumens/Watt): 244
Voltage: 24DC
Dimming: Compatible with most residential dimmers, Lutron DVCL 153P is recommended for best results
Accessories: Corner Connector, Switch Connector, Dimmer Controller, Connector Cable, DC4 Output Splitter, DC8 Output Splitter (No included. Accessories must be purchased separately)
Certification: cULus, Easy Install
Warranty: 5 Years
