RAB Design Lighting 5W Ultra Slim LED Undercabinet Light, 500 mm Long, Natural White, Model UC-LED500-NW*

Description

RAB's UC Ultra slim fixture model can be combined together with their UCP and UCT LED Series. It's slim design makes it ideal to use in shelvings, under cabinets, bookcases, walls and as a task light. Available in 3 colors and 3 lengths, it's the perfect light for your project.

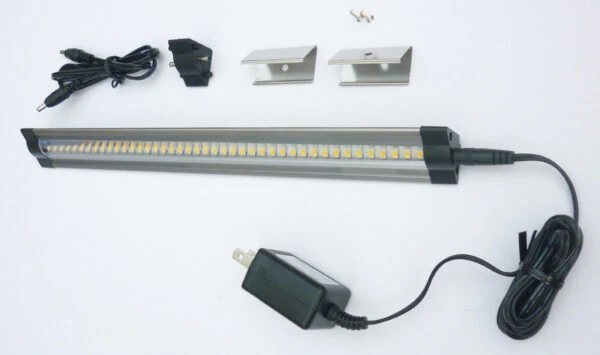

*Each unit includes: 1 fixture, 1 direct connector, 1 cable connector, 2 mounting plates and 2 screws.

**Power supply must be purchased separately

Features

• Ultra-slim design.
• Extruded aluminum housing with a brushed finish.
• Available in three lengths: 300mm (3 watts), 500mm (5 watts), 1000mm (11 watts).
• Link up to 3m (9.8 ft) on one power source. 90-degree corner connector available.
• Natural white(4000k) or warm white (3000k) are available.
• Hardwire kit or plug-in power supply units are sold separately.
• Most TRIAC dimmers will work however under low load conditions, there may be flickering with some dimmers.
• Lutron Diva DVCL 153P is the recommended dimmer that works best without flickering under all load conditions.
• cULus approved.

Technical Information

Model: UC-LED500
Length: 500 mm
LED Color: Natural White 4000K°
Watts: 5
Lumens: 366
Efficacy (Lumens/Watt): 33
Voltage: 24DC
Dimming: Compatible with most residential dimmers, Lutron DVCL 153P is recommended for best results
Accessories: Corner Connector, Switch Connector, Dimmer Controller, Connector Cable, DC4 Output Splitter, DC8 Output Splitter (No included. Accessories must be purchased separately)
Certification: cULus, Easy Install
Warranty: 5 Years

Documents

Spec Sheet

Instruction
