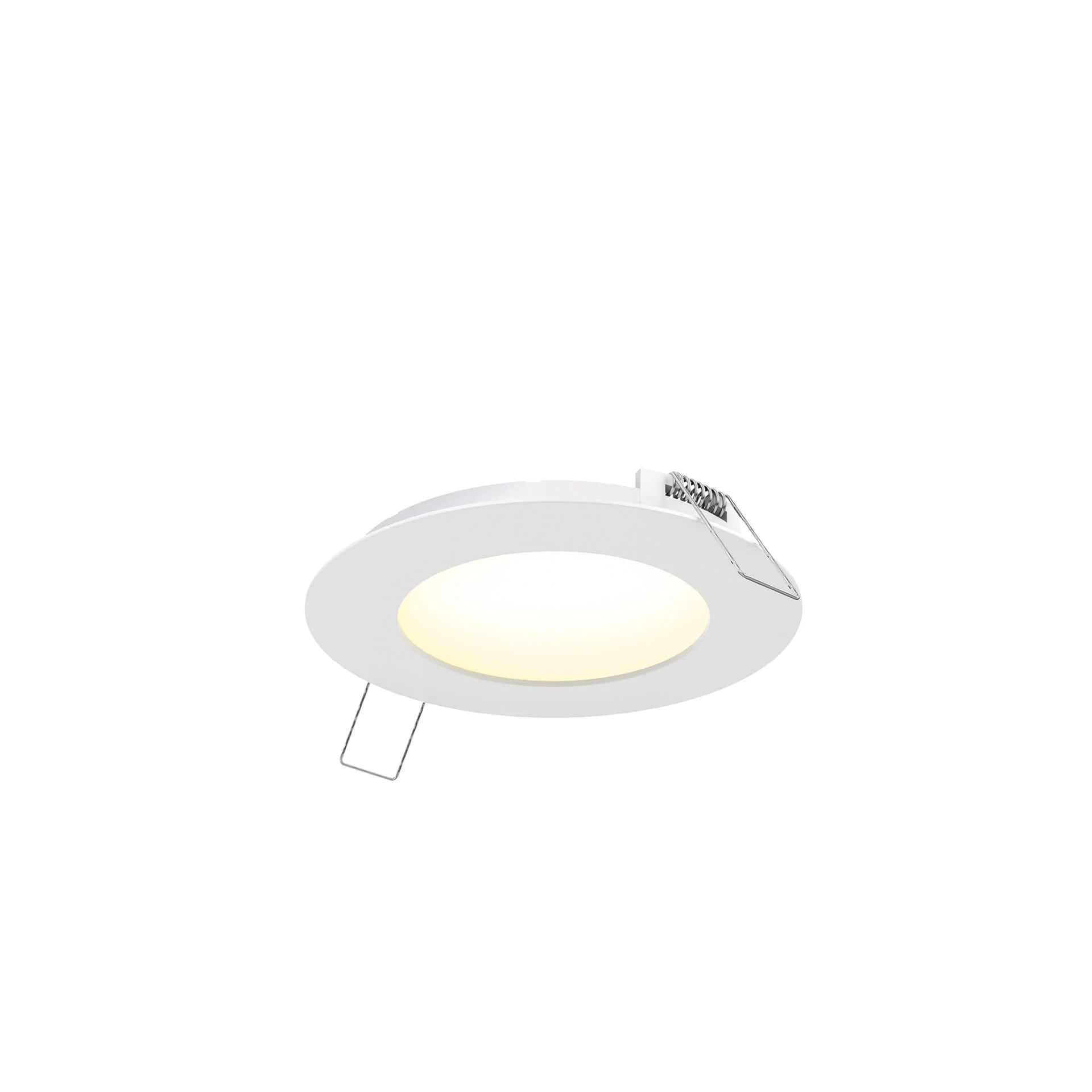

DALS Lighting White 4 Inch Round CCT LED Recessed Panel Light, Model 5004-CC-WH*

Description

Dals' new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.

Features

• Every fixture includes a junction box with an integrated driver
• Over 35,000 hours of service life
• Can be daisy chained
• Superior LED performance and lifespan
• Smooth 360° wide spread
• Minimal heat emission
• Frosted lens
• Edge lit technology
• Aluminum construction
• Switch-selectable CCT: 2700K/ 3000 K/ 3500 K/ 4000 K/ 5000 K
• Very low profile
• IC certification (suitable for direct contact with insulation)
• Air-tight certified as per ASTM E283-04
• Suitable for wet locations
• Ideal operating temperature: -20° to 40° C
• FT4 rated cable
• 5-year warranty

Technical Information

Finish: White
Smart: No
Beam Angle: 110°
Recommended Dimmers: See spec sheet in Documents tab for recommended dimmers
Watts: 11W
Delivered Lumen: 770lm
LED Lumens: 880lm
Dimming: TRIAC
CRI: 80+
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Rating: Wet
Location: Indoor/Outdoor
Voltage: 120V
Cutout size: Ø4-1⁄4"

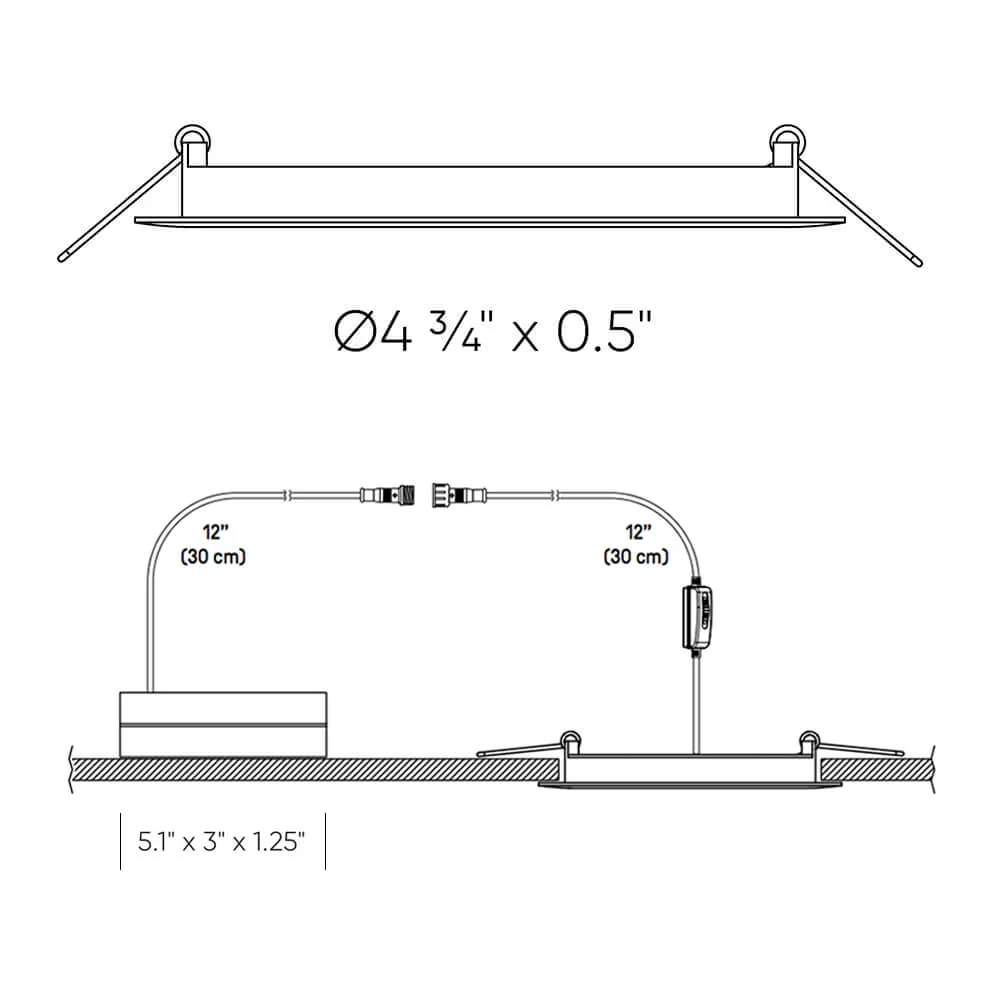

Dimensions: Ø4-3/4" x 0.5"
Lifetime: 35000H
Warranty: 5 Year Limited

Document

Brochure

Instruction

Spec Sheet and Dimmer compatibility
