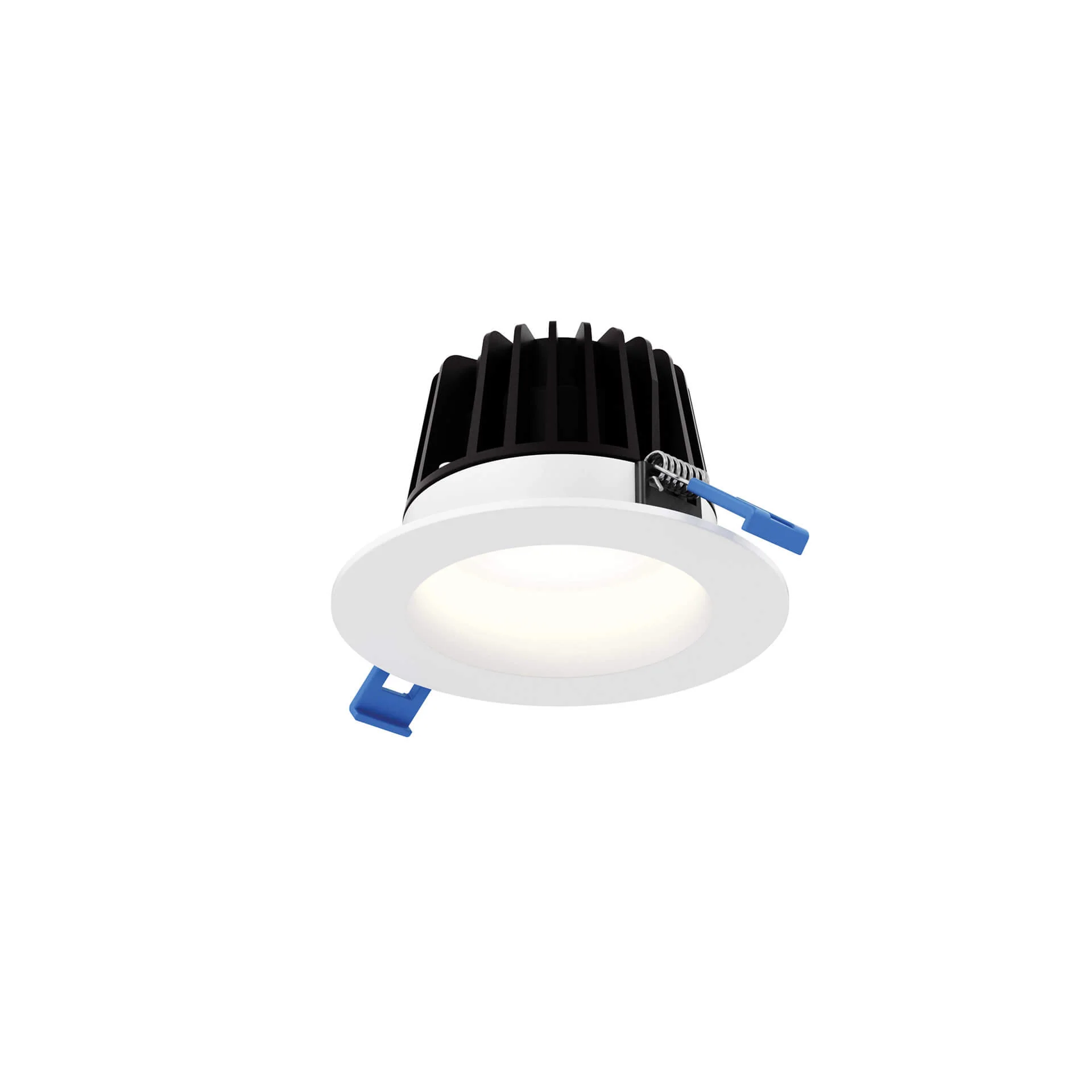

DALS Lighting White 4 Inch Round Indoor/Outdoor Regressed Gimbal Down Light, Model RGR4-CC-WH*

Description

When choosing a recessed fixture, eliminating glare is a priority. The unique positioning of the LED module in this series of downlights will meet that important need.

Features

• Every fixture includes a junction box with integrated dimmable driver
• Can be daisy chained
• Superior LED performance and lifespan
• Regressed light source
• Minimal heat emission
• Aluminum construction
• Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
• IC certification (suitable for direct contact with insulation)
• Air-tight certified as per ASTM E283-04
• 40° beam angle
• Suitable for wet locations
• JA8 certified
• Ideal operating temperature: -20° to 40° C
• FT6 rated cable
• 5-year warranty

Technical Information

Recommended Dimmers: See spec sheet in downloads tab for recommended dimmers
Dimming: 0-10V, ELV, TRIAC
Watts: 14W
Delivered Lumen: 1100lm
LED Lumens: 1200lm
CRI: 90+
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT
Voltage: 120 | 277 V, 120V

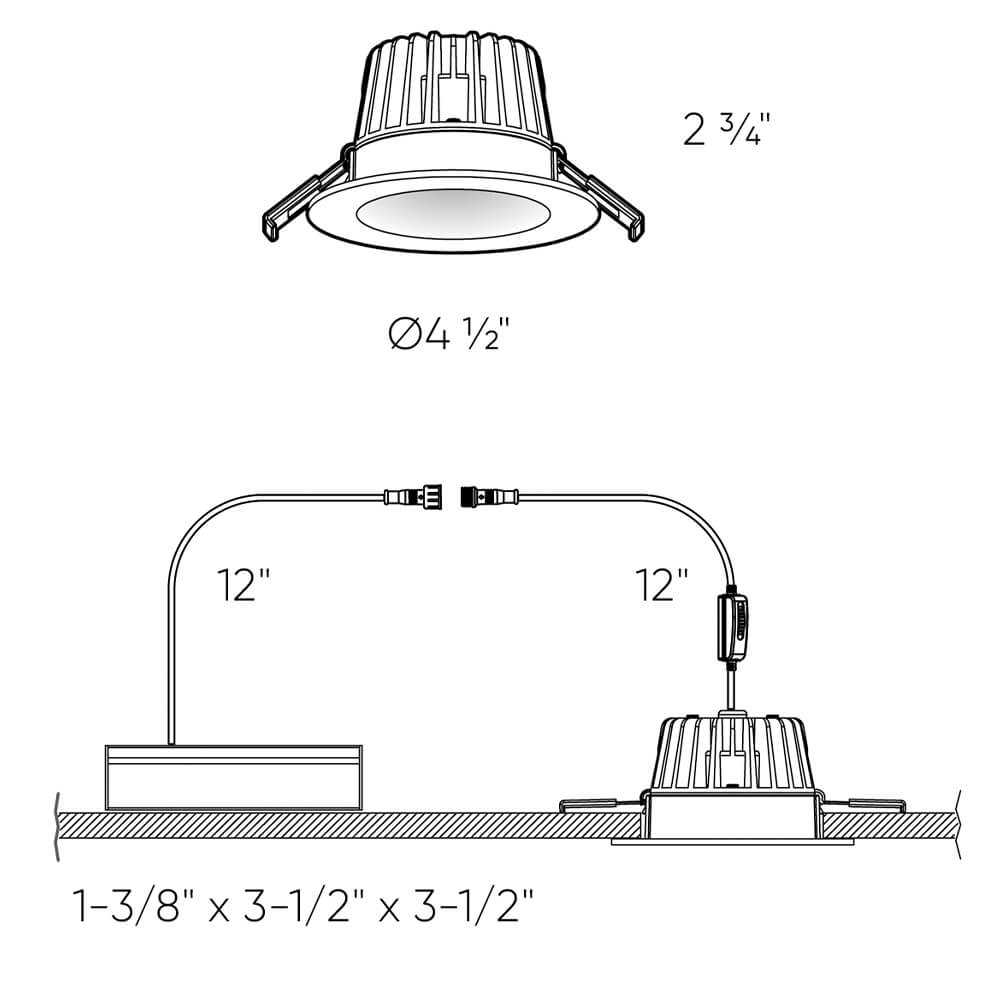

Cutout size: Ø4"
Dimensions: Ø4.5" x 2.75"
Lifetime: 50000H
