Klein Tools Digital Clamp Meter AC/DC Auto-Ranging, Model CL800
Description
Klein Tools CL800 is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and test diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.
Benefits
- Automatically ranging true mean squared (TRMS) technology for increased accuracy
- Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- Thermocouple probe measures temperature
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- Built to withstand a 6.6-foot (2m) drop
- Low battery indicator and easily accessible battery compartment
- Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
- Operating altitude to 6562-Foot (2000m)
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

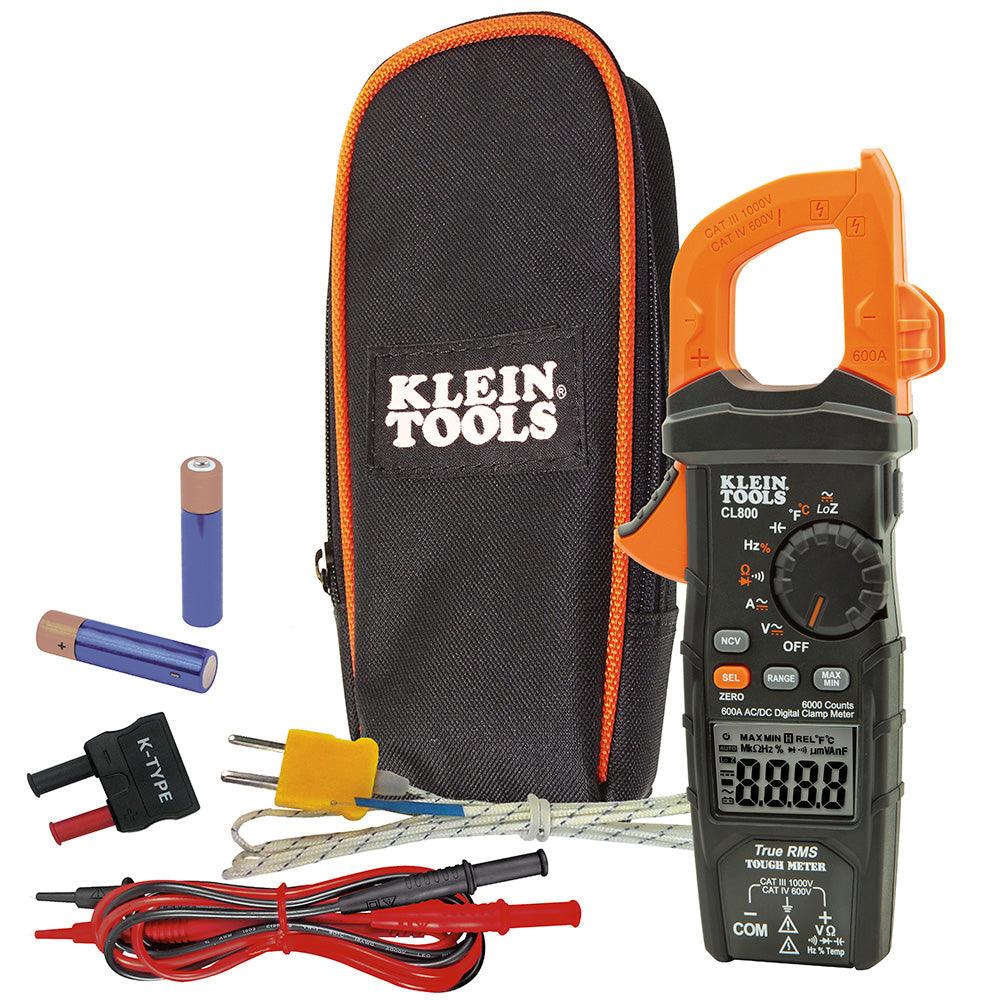

- Included: Carrying Case, 41'' (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
Technical Information
Application: Measures Current
Features: Features Low Battery Indicator and Auto Shut Off
Batteries: 2 x AAA
Jaw Size: 1.38'' (3.5 cm)
Drop Protection: 6.6' (2 m)
Display: 6000 Count LCD
Functions: Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance, and test diodes. Thermocouple probe measures temperature.
Voltage: 1000V AC; 1000V DC
Frequency: 1Hz - 500 KHz
Current: 600A AC; 600A DC
Capacitance: 6000µF
Ohms (Resistance): 60MO
Temperature Range: -14° - 1000°F (-26° - 538°C)
Ingress Protection: IP40
Standard: CAT IV 600V; CE Certified
Overall Length: 9.09'' (23.1 cm)
Overall Height: 1.55'' (3.9 cm)
Overall Width: 3.81'' (9.7 cm)
Weight: 12.5 oz (354 g)
Documents
CL800 - Digital Clamp Meter Instruction Manual
Klein Tools CL800 Catalog
