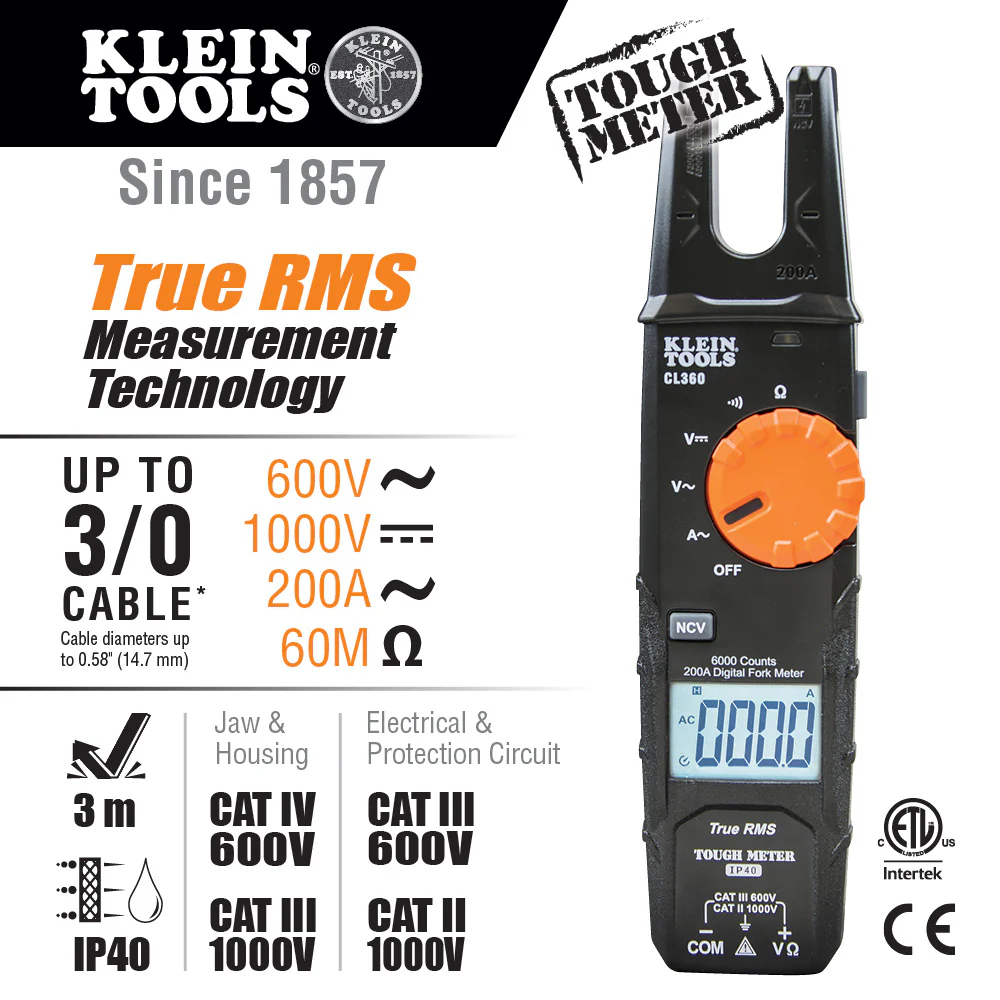

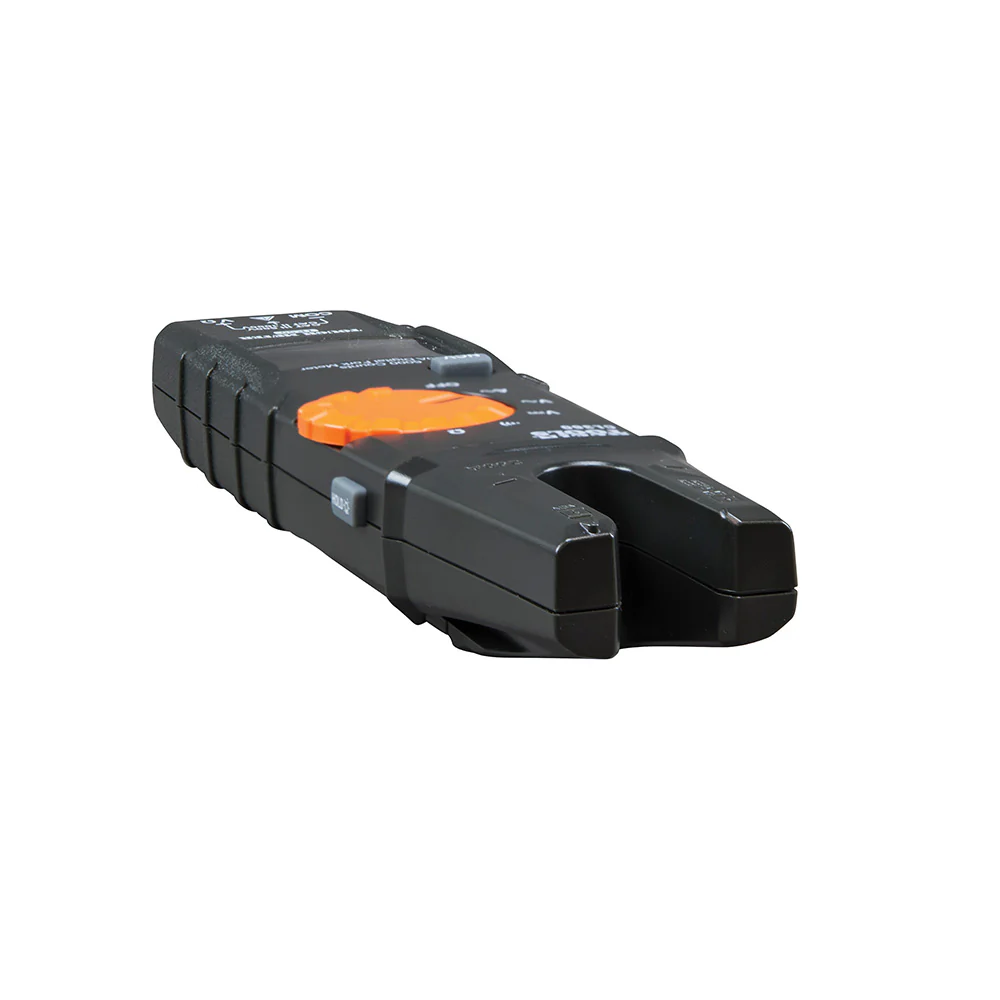

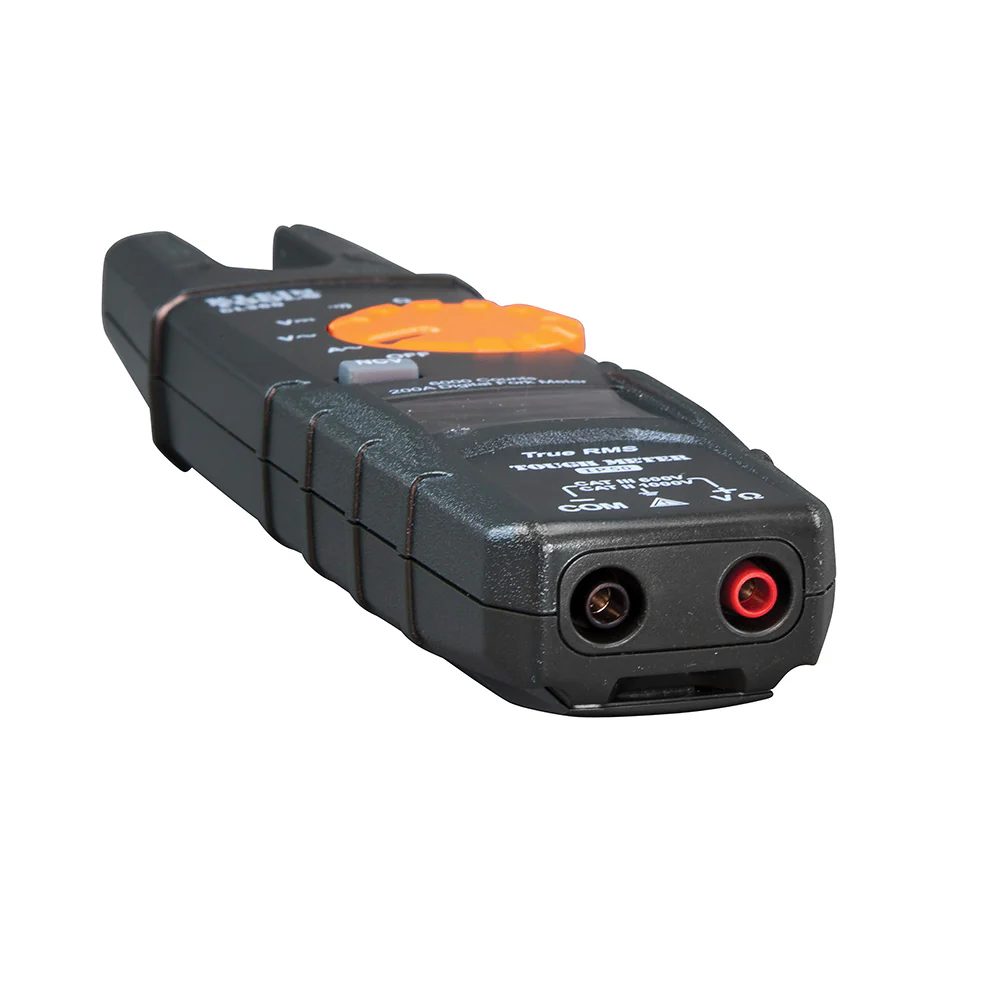

Klein Tools Electrical Tester, Open Jaw Fork Meter, AC Auto-Ranging 200 Amp, Model CL360*

Description

The CL360 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester. It includes a carrying case, test leads and 2 x AAA batteries.

Features

• Open Fork Meter with automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
• Tester measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads
• Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (1.5 cm)
• Non-contact voltage tester integrated into the jaw
• Includes a carrying case, test leads and 2 x AAA batteries
• Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation
• Backlit display for clear readings
• Powers off automatically after 15 minutes of non-use to conserve battery life
• Rugged Klein TOUGH METER is built to withstand a 9.9-Foot (3m) drop
• Low battery indicator and easily accessible battery compartment
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Technical Information

Type: Open Jaw Fork Current Meter
Application: Measures AC Current, AC/DC Voltage, Continuity, Resistance
Special Features: Low Battery Indicator, Built-in Test Lead Holders, Backlit Display
Material: Plastic/Electronics
Batteries: 2 x AAA
Auto-Power Off: Y
Jaw Size: 0.58'' (1.5 cm) Opening
Drop Protection: 9.9' (3m)
Display: 6000 Count LCD
Functions: AC Current, AC/DC Voltage, Continuity, Resistance
Voltage: 600V AC, 1000V DC
Current: 200A AC
Ohms (Resistance): 60MΩ
AC Voltage: 600V
DC Voltage: 1000V
DC Polarity Indicator: Yes
Ingress Protection: IP40
Standard: Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V
Included: Electrical Tester; Carrying Case; Instruction Manual; Straight Input Test Leads; and 2 x 1.5V AAA Batteries
Overall Length: 8.39'' (21.3 cm)
Overall Height: 1.38'' (3.5 cm)
Overall Width: 2.12'' (5.4 cm)
Weight: 6.40 oz (180.0g)
